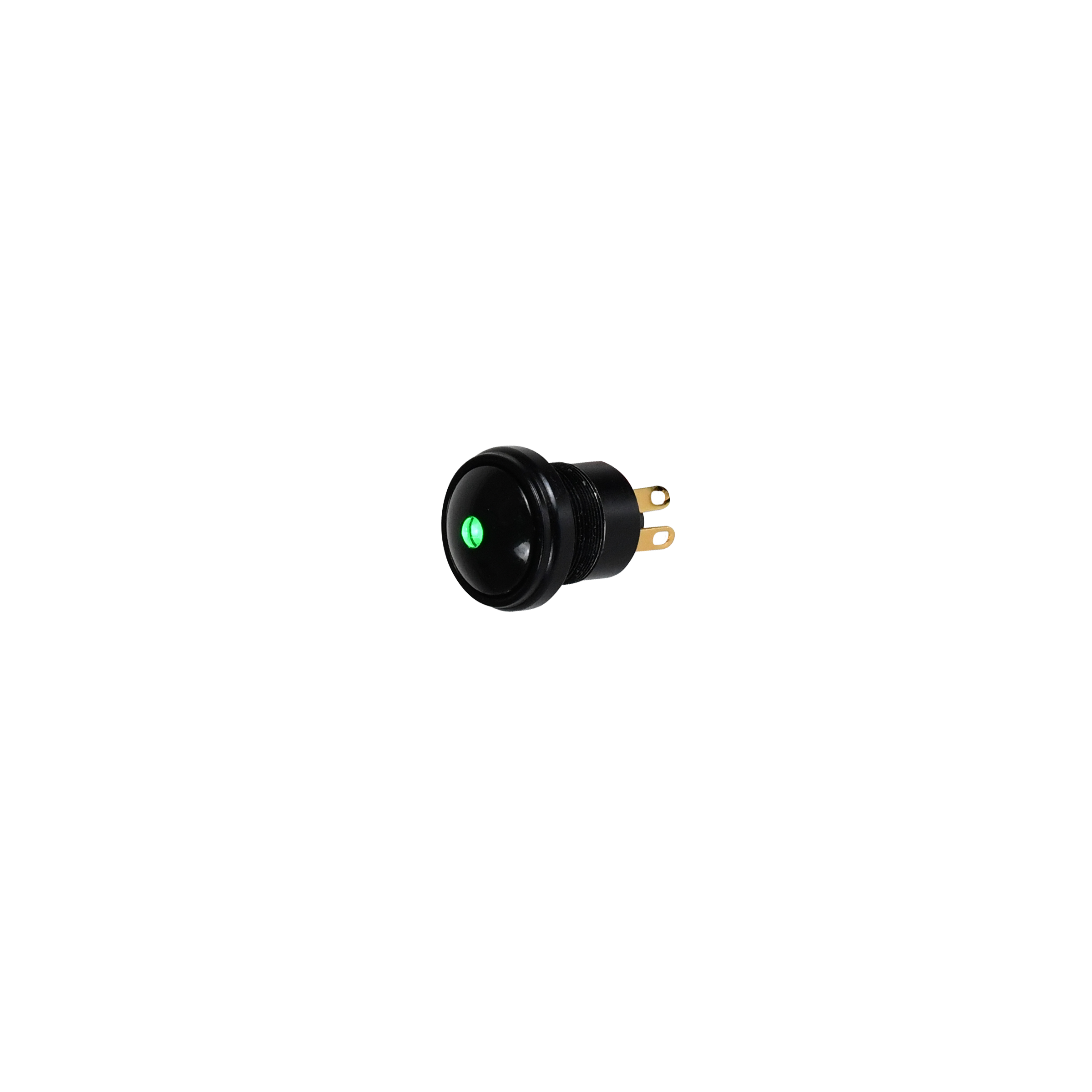

LP7-31111C22

OTTLP7_31111C22
Heilind Number:OTTLP7-31111C22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-31111C22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-31111C22
Series:LP7
Housing Material:Aluminum
Contact Material:Gold Plated
Contact Plating:Gold Plated Silver Alloy
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.23 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP7-31111C22

Detailed Description

Introducing the LP7 Series Illuminated Momentary Action Pushbutton Switch with the SKU LP7-31111C22. This cutting-edge switch features a sleek black design with a durable aluminum housing, making it perfect for various applications. With an IP6K8S rating, it ensures reliable performance even in harsh environments. The illuminated button, with a flush dome lightpipe and matte finish, offers enhanced visibility. Gold plated silver alloy contacts guarantee high conductivity and longevity, with a contact configuration of SPST-NO. Operating at 115VAC or 28VDC, it's suitable for a wide range of voltage requirements. Ideal for panel mounting, the LP7 switch is easy to install with solder termination. Its round actuator shape and thermoplastic material provide ergonomic and comfortable usage. With a high durability rating of 50,000 cycles, this switch offers long-lasting performance. Whether you need a reliable pushbutton for industrial machinery or automotive applications, the LP7 Series is your ultimate solution.
