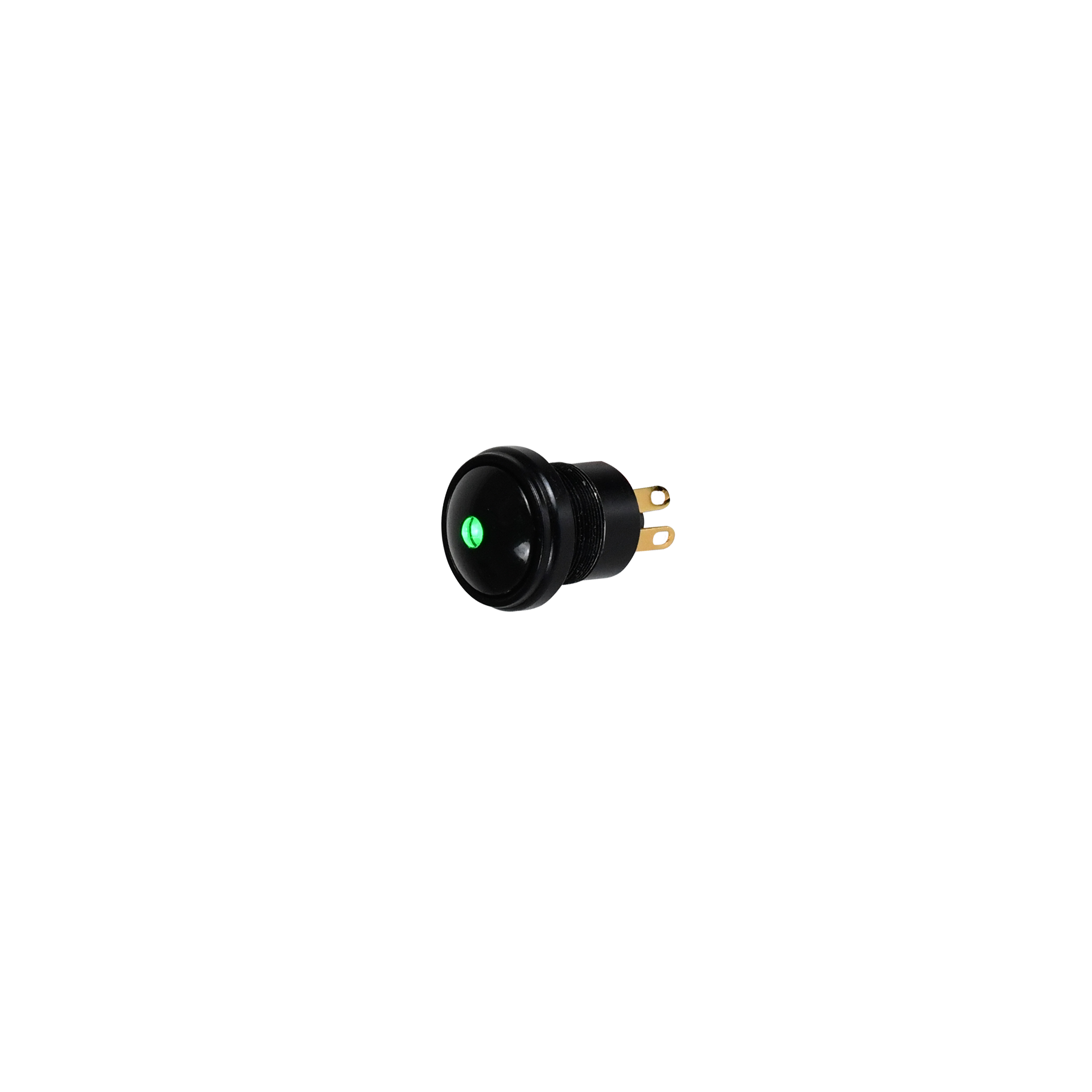

LP7-31131A22

OTTLP7_31131A22
Heilind Number:OTTLP7-31131A22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-31131A22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-31131A22
Series:LP7
Housing Material:Aluminum
Contact Material:Gold Plated
Contact Plating:Gold Plated Silver Alloy
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.23 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP7-31131A22

Detailed Description

Introducing the LP7 Series Illuminated Momentary Action Pushbutton Switch, SKU LP7-31131A22. Designed for durability with a 50,000-cycle lifespan, this high-performance switch features a sleek black aluminum case and flush dome lightpipe matte button with red illumination. Ideal for panel mounting, it offers a reliable SPDT contact configuration with gold-plated silver alloy contacts for superior conductivity. With an IP6K8S rating, it ensures protection against dust and water ingress, while operating smoothly in temperatures ranging from -40°C to 85°C. The switch is suitable for a wide range of applications, from industrial machinery to automotive controls, providing tactile feedback and visual indication of its status. Upgrade your control systems with the LP7 Series Pushbutton Switch, delivering quality and functionality in every press.
