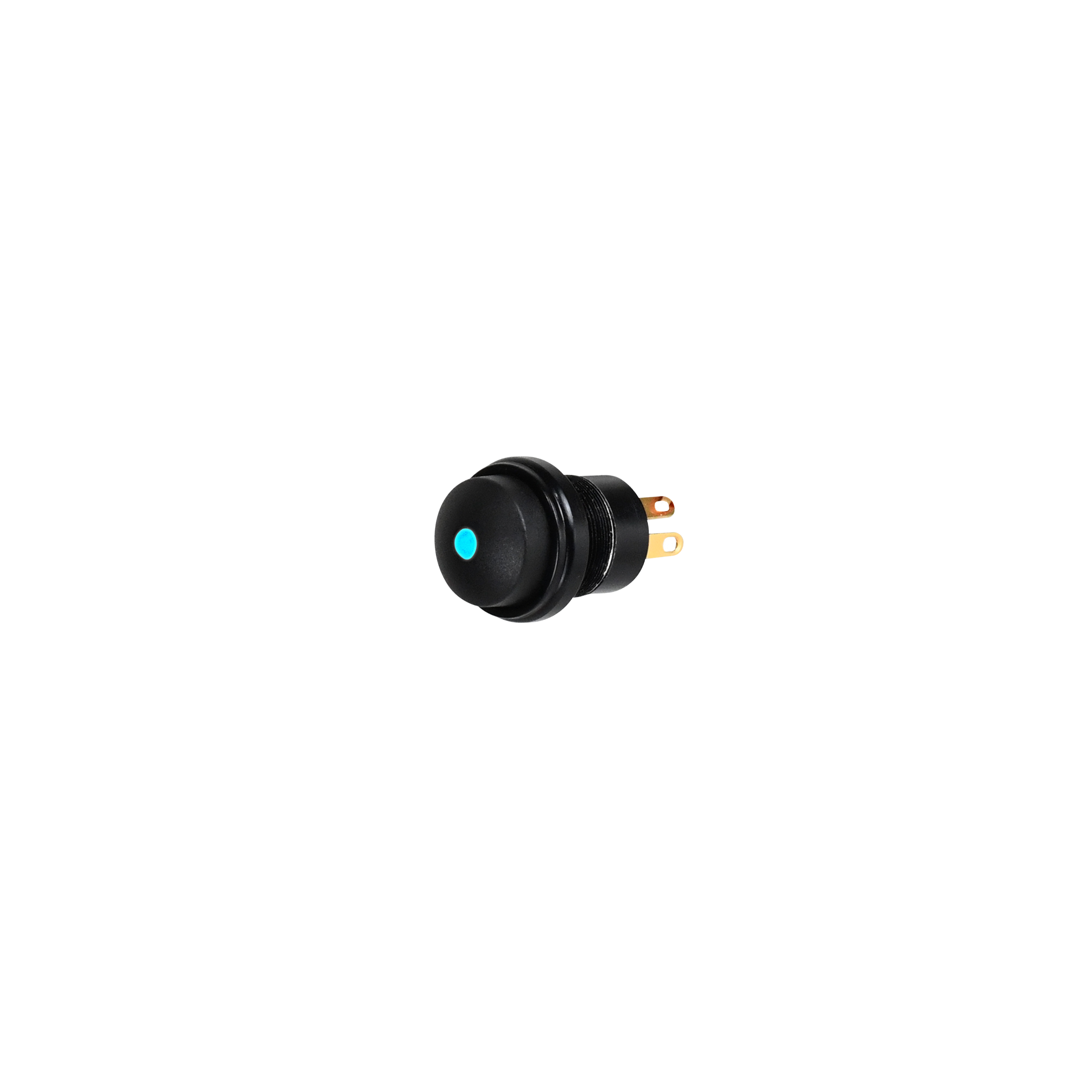

LP7-41111K22

OTTLP7_41111K22
Heilind Number:OTTLP7-41111K22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-41111K22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-41111K22
Series:LP7
Housing Material:Aluminum
Contact Material:Gold Plated
Contact Plating:Gold Plated Silver Alloy
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.23 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
SKU:OTTLP7-41111K22

Detailed Description

Introducing the LP7 Series Illuminated Momentary Action Pushbutton Switch, SKU LP7-41111K22. This sleek and durable switch features a black flush dome lightpipe matte button and round actuator shape, housed in a rugged black aluminum case with an IP6K8S sealing rating. Perfect for panel mounting, it boasts a gold-plated silver alloy contact material, ensuring reliable performance with a 5A current rating. With a contact configuration of SPST-NO and white LED illumination powered by a 12V voltage, this switch offers easy visibility in any environment. Operating temperature ranging from -40°C to 85°C, it guarantees functionality in diverse conditions, making it ideal for a range of applications. Trust in the LP7 Series for high-quality, long-lasting performance.
