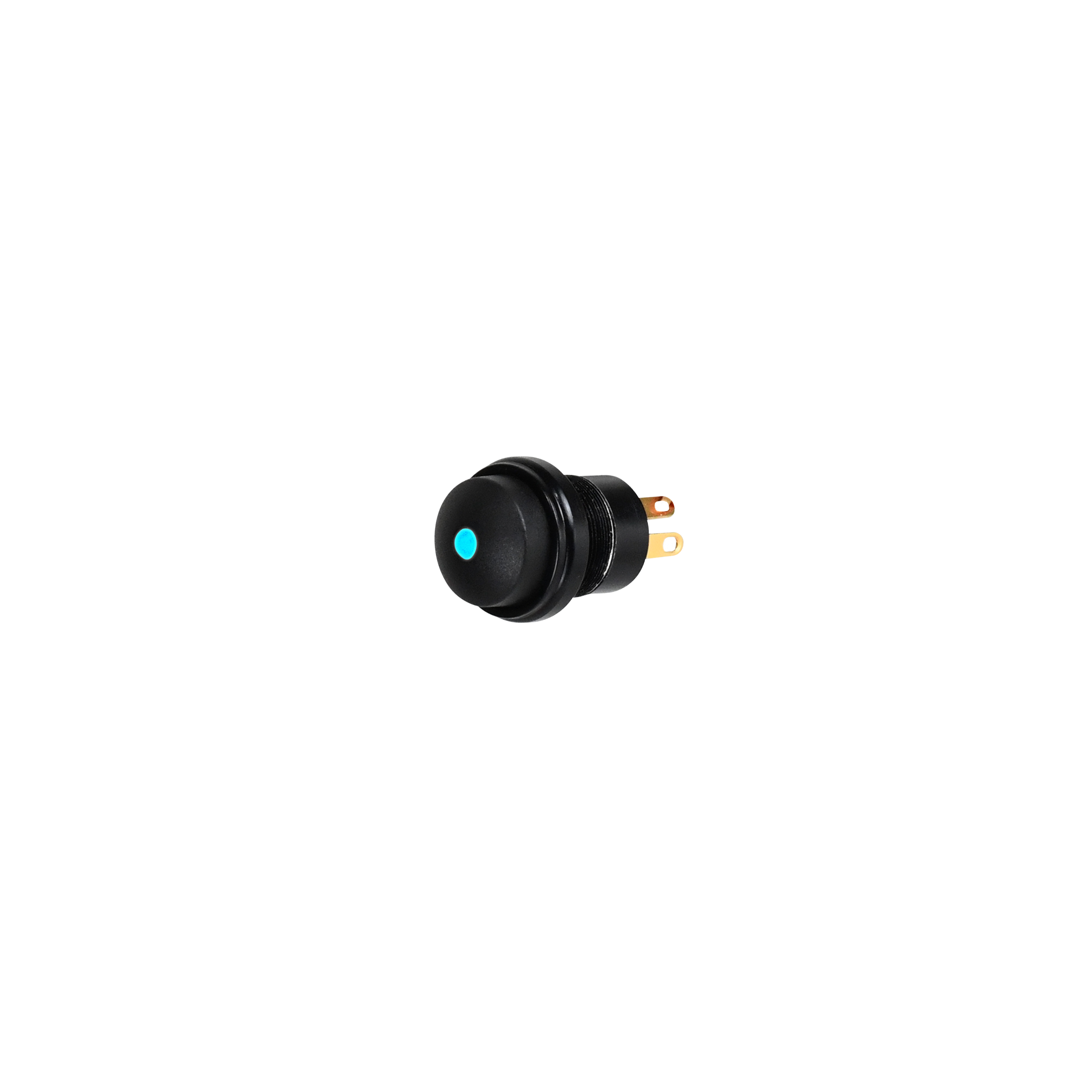

LP7-41131D22

OTTLP7_41131D22
Heilind Number:OTTLP7-41131D22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-41131D22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-41131D22
Series:LP7
Housing Material:Aluminum
Contact Material:Gold Plated
Contact Plating:Gold Plated Silver Alloy
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.23 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP7-41131D22

Detailed Description

Introducing the LP7 series Illuminated Momentary Action Pushbutton Switch, SKU LP7-41131D22. This high-performance switch features a sleek black aluminum housing with a matching cap, designed for durability in demanding environments. With an IP6K8S rating, it offers reliable sealing against dust and water ingress. The flush dome lightpipe matte button, illuminated in vibrant blue, guarantees visibility in any lighting conditions. Operating at a voltage rating of 115VAC and 28VDC, with a current rating of 5A, it ensures efficient power control. Gold-plated silver alloy contacts and a SPDT configuration promise reliable performance over 50,000 cycles. Suitable for panel mounting with solder termination, this switch is ideal for applications requiring precision control with a touch of sophistication.
