LP7-D1111A21

OTTLP7_D1111A21
Heilind Number:OTTLP7-D1111A21
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1111A21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

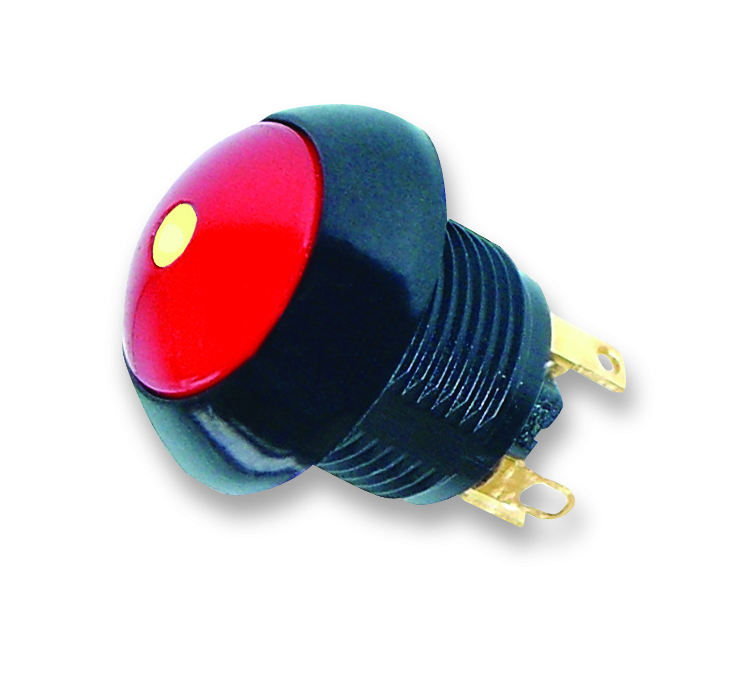

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1111A21
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP7-D1111A21

Detailed Description

Introducing the LP7-D Illuminated Dome Pushbutton Switch, a high-performance component designed for durable and reliable operation in various applications. Featuring a sleek black aluminum case with a striking red cap, this switch not only offers visual appeal but also boasts IP6K4S sealing for protection against environmental elements. The button, made of thermoplastic, is ergonomically designed for comfortable use, with a flush dome lightpipe providing clear illumination. With a contact configuration of SPST-NO and a gold-plated silver contact material, it ensures optimal conductivity. Operating at voltages up to 115VAC and 28VDC, and with a current rating of 5A, this switch is suitable for a wide range of electronic systems. Its high durability rating of 50,000 cycles guarantees long-lasting performance. Perfect for panel mounting with solder termination, this switch is a dependable choice for demanding industrial, automotive, and aerospace applications.
