LP7-D1111G22

OTTLP7_D1111G22
Heilind Number:OTTLP7-D1111G22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1111G22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

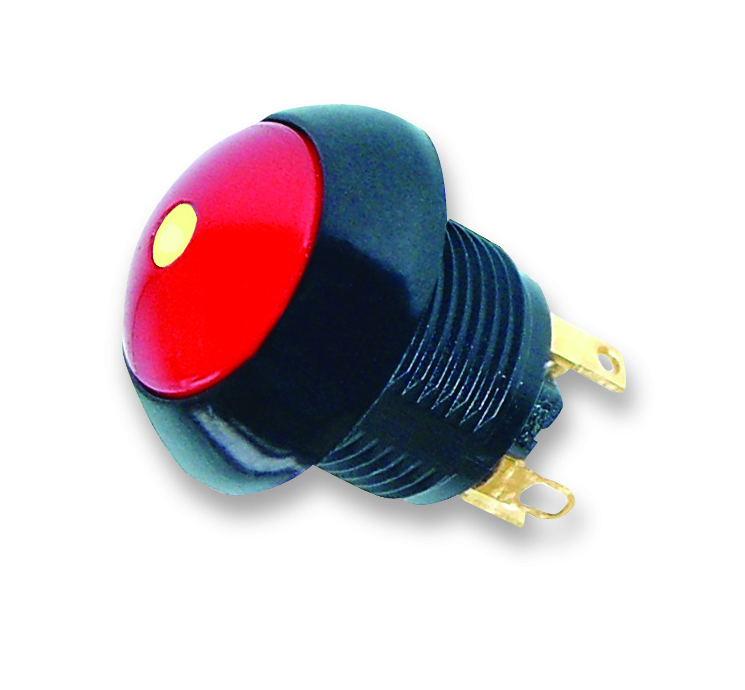

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1111G22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP7-D1111G22

Detailed Description

Introducing the LP7-D Series Illuminated Dome Pushbutton Switch, the perfect solution for reliable and intuitive panel control. Featuring a sleek black aluminum case with a matching flush dome lightpipe button, this switch not only looks sophisticated but also delivers exceptional performance. With an IP6K4S rating, it ensures superior protection against dust and water ingress, making it suitable for various environments. The green LED illumination provides clear visual feedback, while the gold-plated contacts guarantee long-lasting durability. Operating at a voltage rating of 12V DC and 115V AC, with a current rating of 5A, this switch is suitable for a wide range of applications. With a contact configuration of SPST-NO and a momentary switch function, it offers precise and responsive control. Whether used in industrial machinery, automotive systems, or aerospace equipment, the LP7-D1111G22 is a high-performance and reliable choice.
