LP7-D1111G25

OTTLP7_D1111G25
Heilind Number:OTTLP7-D1111G25
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1111G25
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

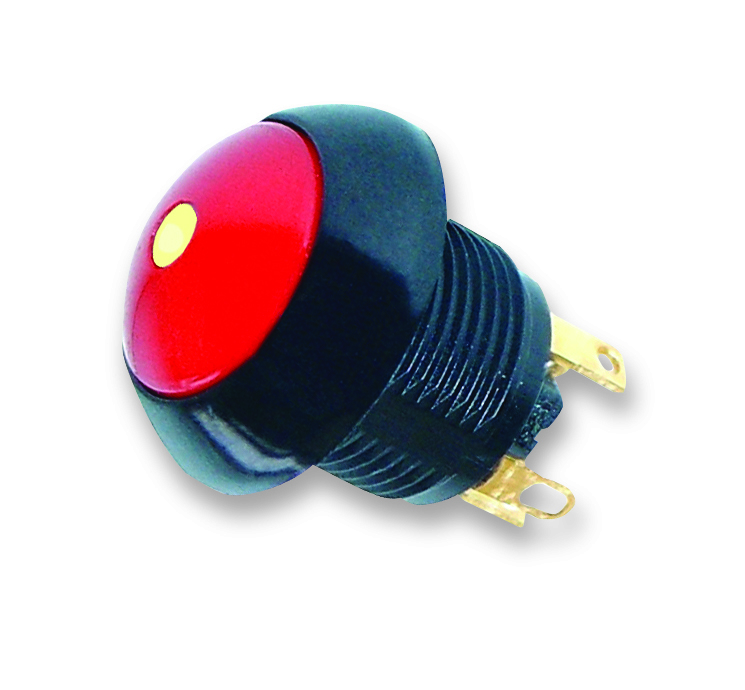

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1111G25
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Green
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP7-D1111G25

Detailed Description

Introducing the LP7-D Series Illuminated Dome Pushbutton Switch, a high-performance panel mount switch designed for seamless operation in various environments. Featuring a sleek black case with a green flush dome lightpipe for clear visibility, this switch boasts an IP6K4S rating, ensuring reliable sealing against water and dust. The round button actuator, made of durable thermoplastic, offers a comfortable .27-inch length and a tactile Off-(On) switch function. With a gold-plated contact surface, the SPST-NO configuration guarantees precise and efficient performance. The switch can handle a current rating of 5A and is suitable for both AC (115V) and DC (28V) applications. Operating between -40°C to 85°C, it is built for durability, with a lifespan of 50,000 cycles. Ideal for use in industrial, automotive, and aerospace settings, the LP7-D1111G25 is the perfect choice for demanding push-button switch needs.
