LP7-D1121F21

OTTLP7_D1121F21
Heilind Number:OTTLP7-D1121F21
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1121F21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

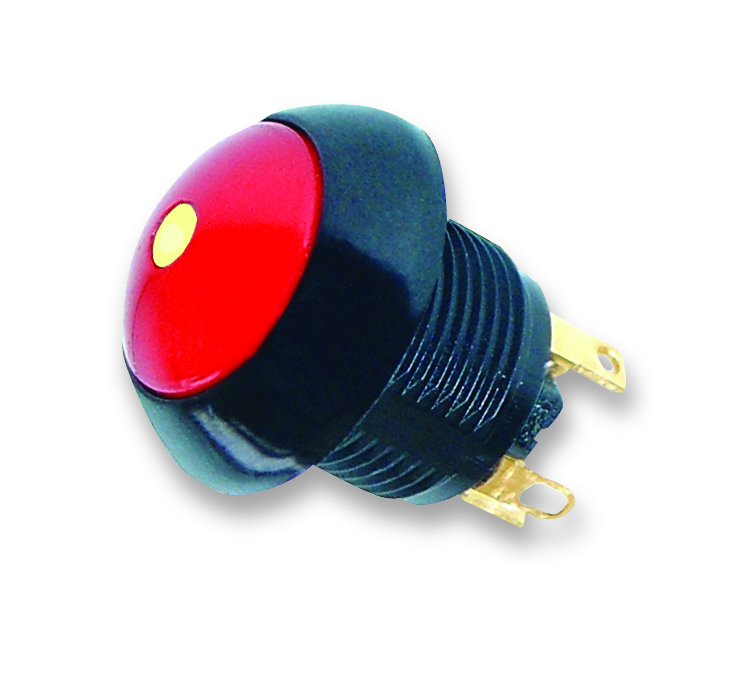

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1121F21
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.27 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP7-D1121F21

Detailed Description

Introducing the LP7-D series Illuminated Dome Pushbutton Switch with SKU LP7-D1121F21. This high-performance switch features a durable construction with a red flush dome lightpipe actuator and a sleek black aluminum case. Boasting an IP6K4S rating, it offers reliable protection against dust and water ingress, making it ideal for demanding environments. The SPST-NC contact configuration, along with silver contacts and gold plating, ensures excellent conductivity and longevity. With a current rating of 5A, voltage ratings up to 115VAC/28VDC, and an illumination voltage of 12V, this switch is suitable for a wide range of applications. Its sealed design, solder termination, and operating temperatures ranging from -40°C to 85°C further enhance its versatility and reliability. The LP7-D1121F21 is a top choice for industries requiring high-quality illuminated pushbutton switches.
