LP7-D1131J26

OTTLP7_D1131J26
Heilind Number:OTTLP7-D1131J26
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1131J26
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

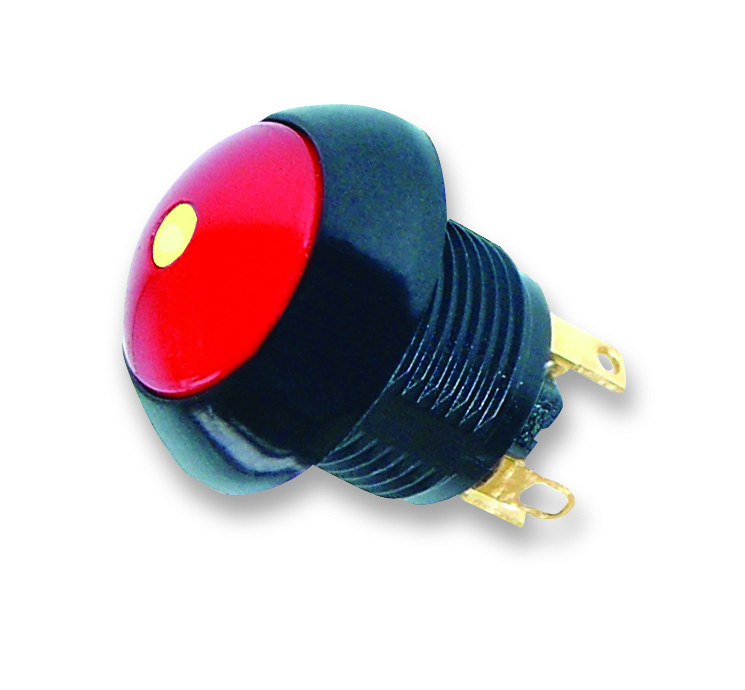

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1131J26
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.27 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP7-D1131J26

Detailed Description

Introducing the LP7-D1131J26, an advanced Illuminated Dome Pushbutton Switch designed for premium performance in demanding environments. Featuring a sleek Blue cap and durable Black aluminum housing, this switch is not only visually striking but also built to last. With an IP6K4S rating, it offers reliable protection against dust and water ingress. The Flush Dome Lightpipe actuator, made of high-quality thermoplastic, ensures smooth and precise operation. Gold-plated contacts and Silver contact material guarantee excellent conductivity and longevity, with a durability rating of 50,000 cycles. Suitable for panel mounting, it boasts a 5A current rating and SPDT contact configuration, making it ideal for various applications. Illuminated with a vivid Blue light, it provides clear indication even in low-light conditions. Whether in industrial machinery, automotive, or aerospace systems, this sealed switch delivers reliable performance with a wide operating temperature range from -40°C to 85°C. Trust the LP7-D1131J26 for efficient and durable switching solutions.
