LP7-D1211A21

OTTLP7_D1211A21
Heilind Number:OTTLP7-D1211A21
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1211A21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

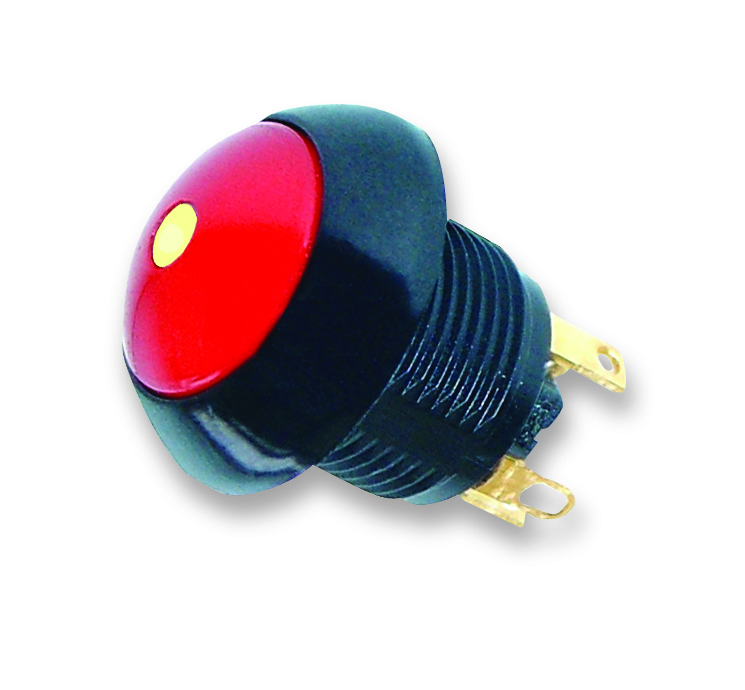

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1211A21
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP7-D1211A21

Detailed Description

Introducing the LP7-D1211A21, a high-performance illuminated dome pushbutton switch designed for precision control in demanding environments. Featuring a sleek black aluminum case with a vibrant red cap, this switch not only offers a striking appearance but also boasts impressive durability with a rating of 50,000 cycles. The flush dome lightpipe actuator, made of high-quality thermoplastic, ensures smooth and reliable operation. With an IP6K8S rating, it guarantees protection against dust and water ingress. The SPST-NO contact configuration, with silver contacts and gold plating, delivers excellent conductivity. Operating efficiently in a wide temperature range from -40°C to 85°C, and with a current rating of 5A, this switch is suitable for various industrial applications. Whether it's for panel mounting or solder termination, the LP7-D1211A21 is the perfect choice for reliable and illuminated tactile switching.
