LP7-D1211H22

OTTLP7_D1211H22
Heilind Number:OTTLP7-D1211H22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1211H22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

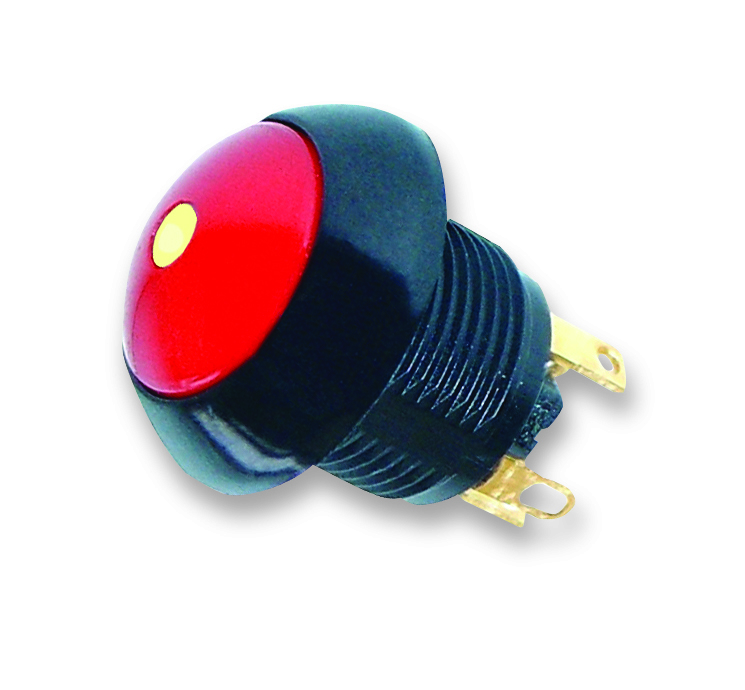

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1211H22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP7-D1211H22

Detailed Description

Introducing the LP7-D1211H22, a high-performance Illuminated Dome Pushbutton Switch. Engineered for durability with a rating of 50,000 cycles, this switch guarantees long-lasting reliability. Featuring a sleek black aluminum housing and a flush dome lightpipe actuator, it offers a seamless panel mount installation. With an IP6K8S rating, it ensures resistance to dust and water ingress, making it ideal for various environments. The gold-plated contacts and silver contact material ensure excellent conductivity. Its SPST-NO contact configuration and Off-(On) switch function provide precise control. Illuminated with an amber LED and operating at 12V, it offers clear visual feedback. Suitable for both AC and DC applications, with voltage ratings of 115VAC and 28VDC, and a current rating of 5A, it meets diverse power requirements. Operating efficiently in temperatures ranging from -40°C to 85°C, it is reliable in extreme conditions. Perfect for use in aerospace, defense, and industrial settings, the LP7-D1211H22 is a top choice for high-performance switching needs.
