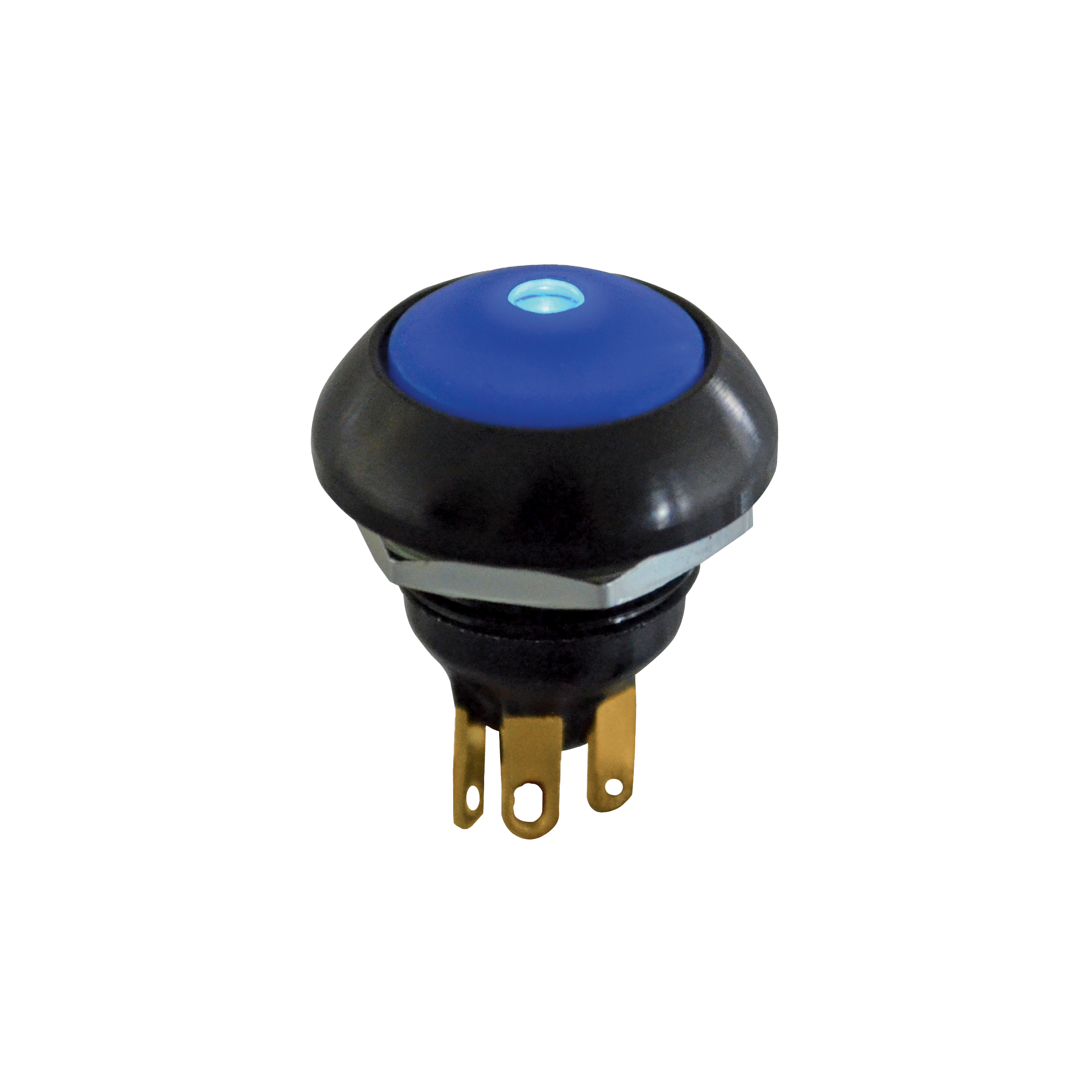

LP7-D1212F22

OTTLP7_D1212F22
Heilind Number:OTTLP7-D1212F22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1212F22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1212F22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):1,000,000 Cycles
Mounting Style:Panel Mount
Current Rating:1 - 100 mA
Voltage Rating (DC):1 - 28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP7-D1212F22

Detailed Description

Introducing the LP7-D Series Illuminated Dome Pushbutton Switch with SKU LP7-D1212F22. This sleek and durable switch, featuring a black cap and case, is designed for panel mounting and boasts an IP6K8S rating for exceptional protection against dust and water ingress. The flush dome lightpipe button, made of thermoplastic, ensures smooth actuation, while the gold-plated contacts guarantee reliable conductivity. With an SPST-NO contact configuration and a current rating of 1-100mA, this switch is perfect for various low-power applications. Its red illumination, powered by a 12V DC voltage, provides clear visual feedback. Ideal for use in environments with temperatures ranging from -40°C to 85°C, this sealed switch offers a long-lasting performance with a durability rating of 1,000,000 cycles. Elevate your control panel with the LP7-D1212F22, where quality meets functionality seamlessly.
