LP7-D1412A22

OTTLP7_D1412A22
Heilind Number:OTTLP7-D1412A22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D1412A22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

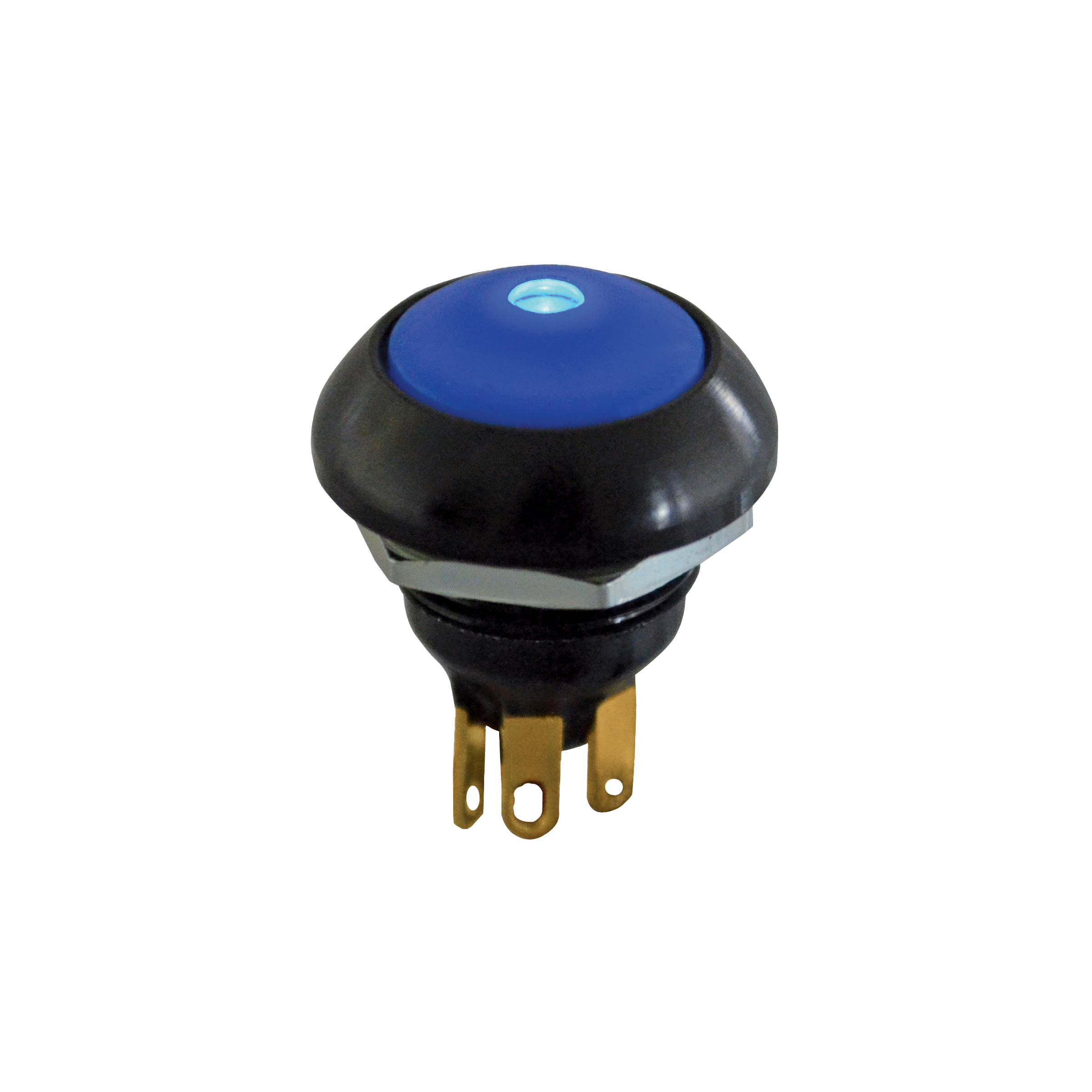

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D1412A22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:PC Pin
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):1,000,000 Cycles
Mounting Style:Panel Mount
Current Rating:1 - 100 mA
Voltage Rating (DC):1 - 28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP7-D1412A22

Detailed Description

The LP7-D series Illuminated Dome Pushbutton Switch, LP7-D1412A22, is a high-performance panel mount switch designed for durable and reliable operation in various environments. Featuring a sleek black aluminum housing with a matching black cap, this switch is not only aesthetically pleasing but also IP6K8S rated for dust and water resistance. The red illumination, powered by a 2V voltage, provides clear visibility, while the off-(on) switch function with a SPST-NO contact configuration ensures precise control. With a current rating of 1-100mA and a voltage rating of 1-28VDC, this switch is suitable for a wide range of applications. The flush dome lightpipe actuator, made of thermoplastic, offers a smooth and ergonomic button for user interaction. Gold-plated contacts with silver contact material guarantee longevity, with a durability rating of 1,000,000 cycles. Operating temperature ranges from -40°C to 85°C, making it suitable for both indoor and outdoor use. Perfect for use in industrial, automotive, or consumer electronics applications, the LP7-D1412A22 is a dependable and versatile switch that meets the highest standards of quality and performance.
