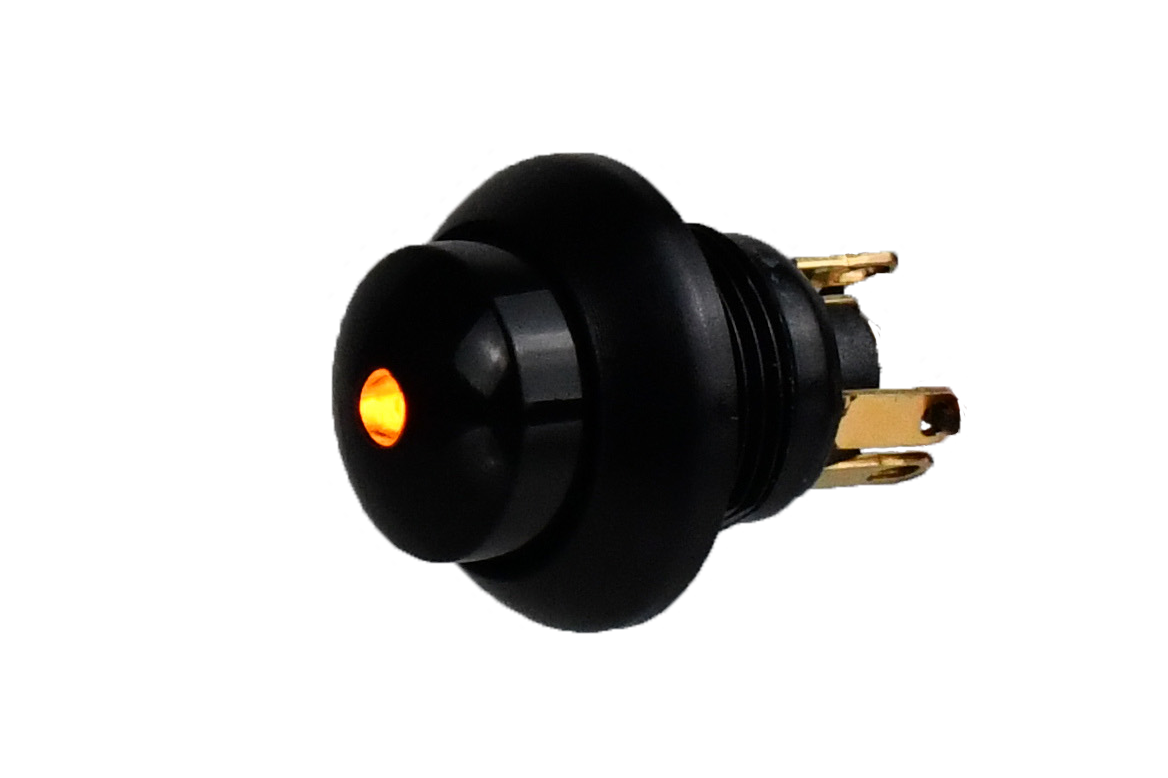

LP7-D2111F21

OTTLP7_D2111F21
Heilind Number:OTTLP7-D2111F21
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D2111F21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D2111F21
Series:LP7-D
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome Lightpipe)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.2 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Silver
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTLP7-D2111F21

Detailed Description

Introducing the LP7-D2111F21, a high-performance illuminated dome pushbutton switch designed for seamless operation in demanding environments. Featuring a vibrant red cap and durable black housing, this switch boasts an IP6K4S rating, ensuring reliable performance even in harsh conditions. The button, with a raised dome lightpipe actuator, offers tactile feedback and easy visibility. With a contact configuration of SPST-NO and a current rating of 5A, it guarantees efficient electrical control. Gold-plated contacts and a silver contact material enhance conductivity and longevity, with a lifespan of 50,000 cycles. Suitable for panel mounting with solder termination, its aluminum housing and thermoplastic actuator provide robustness. The switch operates at temperatures ranging from -40°C to 85°C and accommodates voltages up to 115 VAC and 28 VDC, with illumination at 12V. Ideal for industrial applications, the LP7-D2111F21 ensures precision and durability in every use.
