LP7-D2111G25

OTTLP7_D2111G25
Heilind Number:OTTLP7-D2111G25
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D2111G25
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

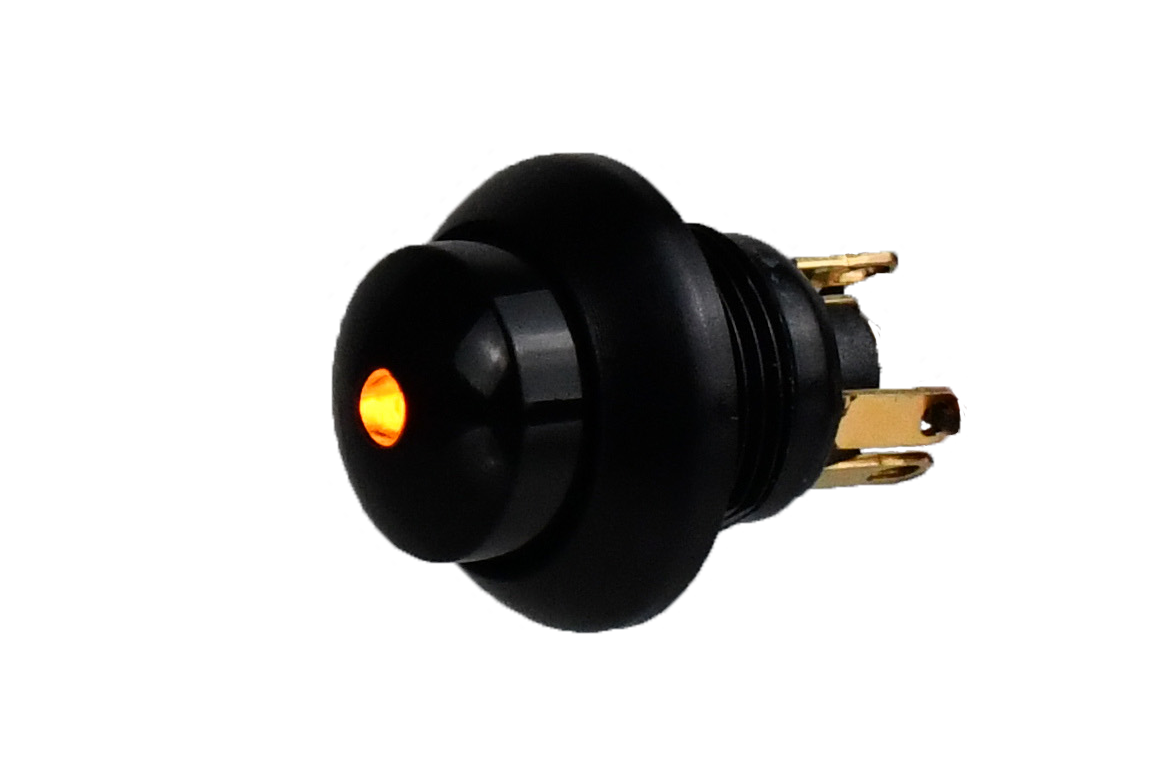

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D2111G25
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Green
Actuator Length:.2 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP7-D2111G25

Detailed Description

Introducing the LP7-D2111G25, a high-performance illuminated dome pushbutton switch designed for seamless panel mounting. Featuring a sleek black aluminum case with a vibrant green cap, this switch combines durability with style. The raised dome lightpipe actuator, made of thermoplastic, ensures precise and responsive operation. With a contact configuration of SPST-NO and a gold-plated contact material, it guarantees reliable performance even in demanding environments. The switch offers a current rating of 5A, voltage ratings of 115VAC and 28VDC, and an illumination voltage of 12V. Its IP6K4S rating and sealed sub-type make it suitable for a wide range of applications. With a switch function of Off-(On) and a long-lasting durability rating of 50,000 cycles, the LP7-D2111G25 is a versatile and dependable choice for industrial and commercial settings.
