LP7-D2111K29

OTTLP7_D2111K29
Heilind Number:OTTLP7-D2111K29
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D2111K29
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

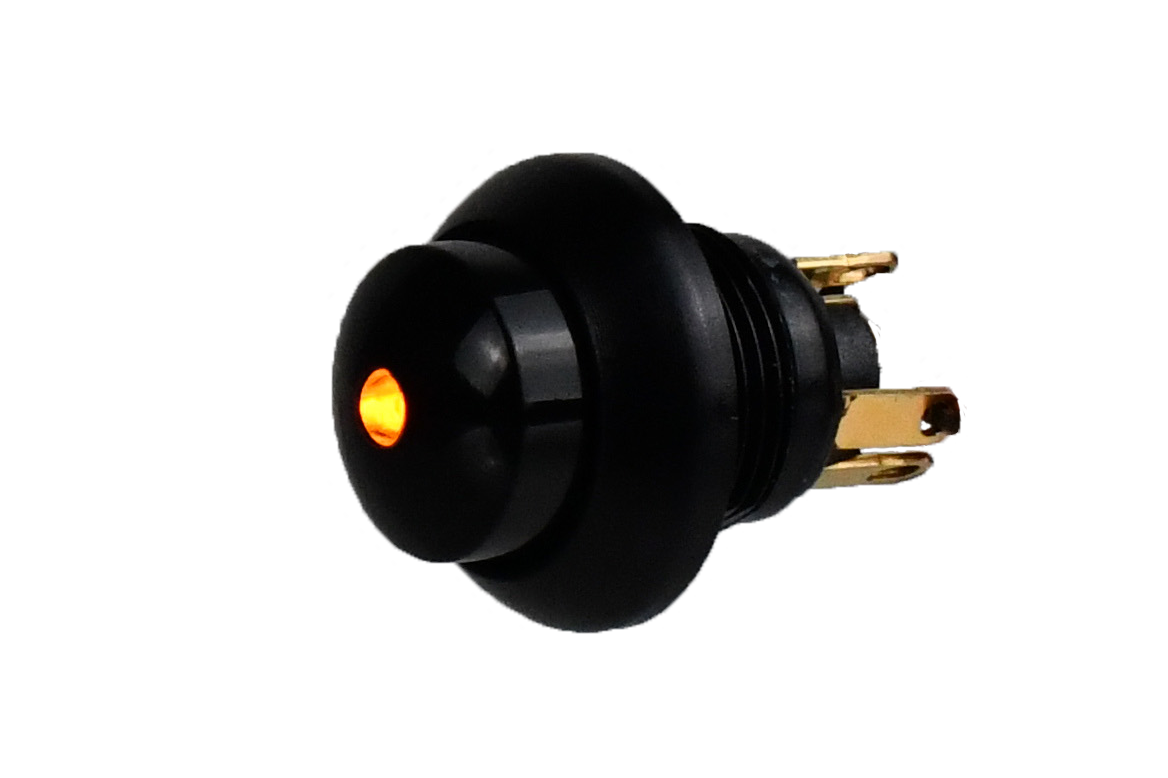

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D2111K29
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White
Actuator Length:.2 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
SKU:OTTLP7-D2111K29

Detailed Description

The LP7-D2111K29 Illuminated Dome Pushbutton Switch is a high-performance component designed for reliable operation in demanding environments. Featuring a white button with raised dome lightpipe for easy visibility, this switch offers a sleek black aluminum case with an IP6K4S rating for dust and water resistance. With a 5A current rating, gold-plated contacts, and a 50,000 cycle durability, it ensures long-lasting performance. The SPST-NO contact configuration and off-(on) switch function make it ideal for various applications. Operating smoothly even in extreme temperatures ranging from -40°C to 85°C, this switch guarantees consistent functionality. Whether used in industrial machinery, automotive systems, or aerospace applications, the LP7-D2111K29 delivers dependable performance with every press.
