LP7-D2131K22

OTTLP7_D2131K22
Heilind Number:OTTLP7-D2131K22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D2131K22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

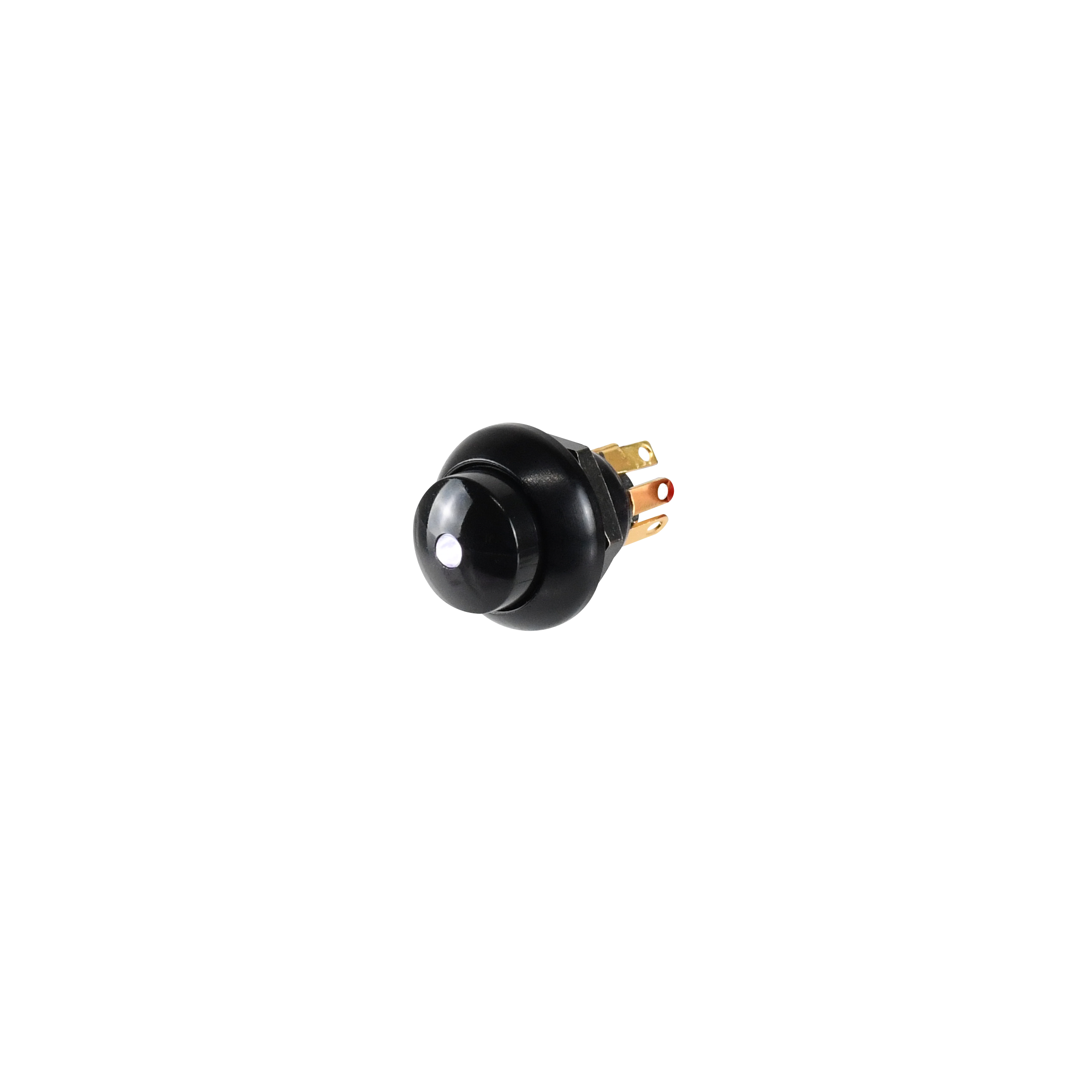

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D2131K22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.2 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
SKU:OTTLP7-D2131K22

Detailed Description

The LP7-D2131K22 is a high-performance Illuminated Dome Pushbutton Switch designed for precision control in industrial settings. Featuring a durable black aluminum housing with an IP6K4S rating, this panel-mount switch ensures reliable operation even in harsh environments. The raised dome lightpipe actuator, made of thermoplastic, offers tactile feedback and easy visibility, while the white LED illumination enhances visibility in low-light conditions. With a contact configuration of SPDT and a current rating of 5A, it guarantees efficient power management. Gold-plated silver contacts and a 50,000 cycle durability rating ensure long-term reliability. Operating between -40°C to 85°C, with voltage ratings of 115VAC and 28VDC, it offers versatility for various applications. Perfect for aerospace, defense, and industrial control systems, this switch is a dependable choice for demanding environments.
