LP7-D2211A21

OTTLP7_D2211A21
Heilind Number:OTTLP7-D2211A21
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D2211A21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

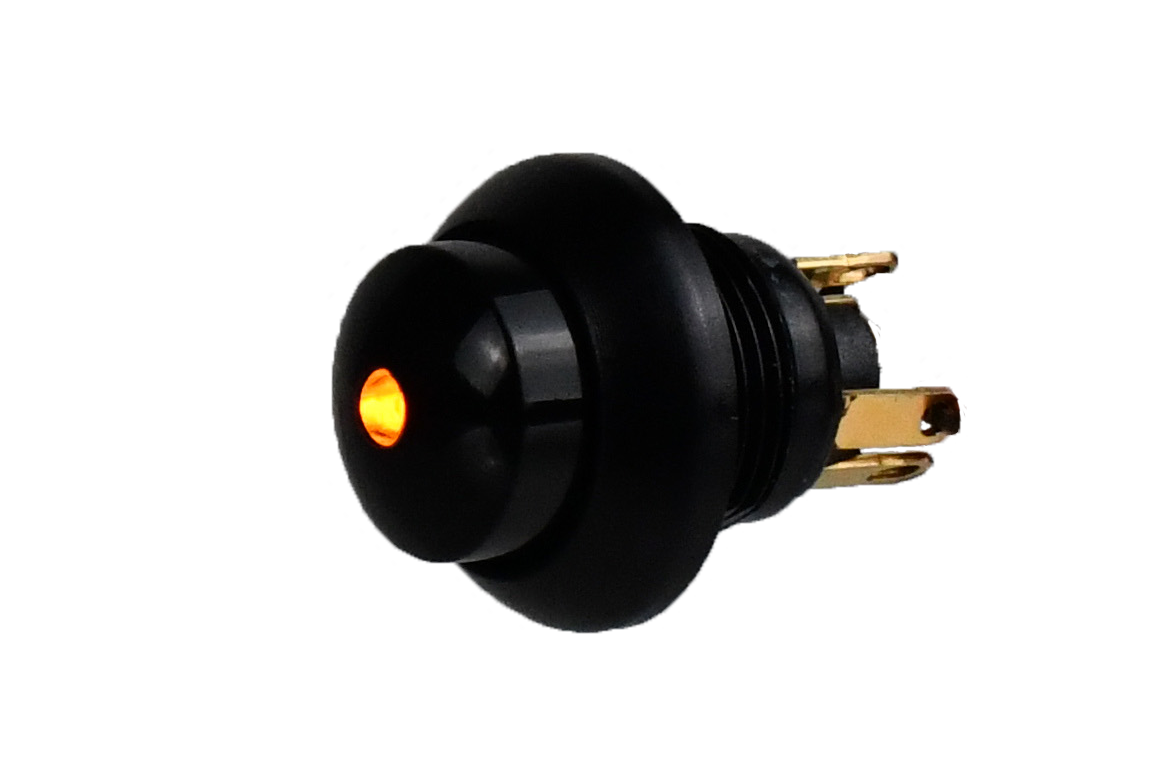

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D2211A21
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.2 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP7-D2211A21

Detailed Description

Introducing the LP7-D2211A21 Illuminated Dome Pushbutton Switch, a high-performance component designed for seamless operation in demanding environments. With a durable construction featuring a black aluminum case and thermoplastic actuator, this switch ensures reliability even in harsh conditions. The red illuminated button, accented by a raised dome lightpipe, offers enhanced visibility. Boasting an IP6K8S rating for water and dust resistance, along with gold-plated contacts for optimal conductivity, this switch guarantees longevity with a durability rating of 50,000 cycles. Perfect for panel mounting, it features a solder termination type and operates at a wide temperature range from -40°C to 85°C. The SPST-NO configuration and Off-(On) switch function provide precise control, while the 5A current rating and dual voltage ratings (115VAC, 28VDC) cater to diverse power requirements. Ideal for aerospace, automotive, and industrial applications, the LP7-D2211A21 is a reliable and versatile solution for your switching needs.
