LP7-D3111A21

OTTLP7_D3111A21
Heilind Number:OTTLP7-D3111A21
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D3111A21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

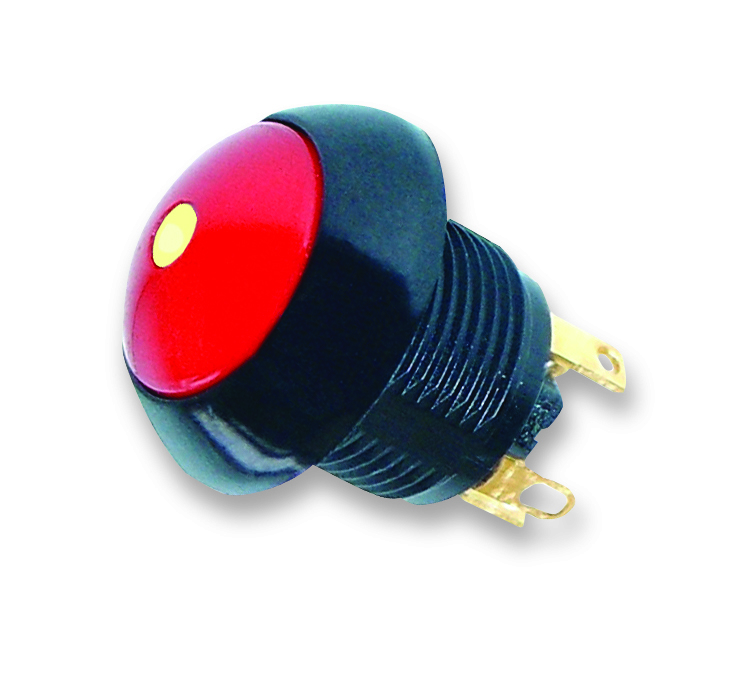

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D3111A21
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP7-D3111A21

Detailed Description

Introducing the LP7-D series Illuminated Dome Pushbutton Switch, SKU LP7-D3111A21, designed for high-performance applications. Featuring a vibrant red LED illumination and a durable black aluminum housing, this switch offers both visual appeal and robust construction. With an IP6K4S rating, it ensures reliable operation even in demanding environments. The SPST-NO contact configuration, gold-plated contacts, and silver contact material guarantee excellent conductivity and longevity. Suitable for panel mounting, its round button actuator with flush dome lightpipe provides a smooth and ergonomic interface. Rated for 5A current, 115VAC voltage, and 28VDC voltage, this switch is versatile and efficient. Whether used in industrial machinery or aerospace systems, its 50,000 cycle durability and wide operating temperature range from -40°C to 85°C make it a dependable choice. Upgrade your control panel with the LP7-D3111A21 for precision and performance.
