LP7-D3111J22

OTTLP7_D3111J22
Heilind Number:OTTLP7-D3111J22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D3111J22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

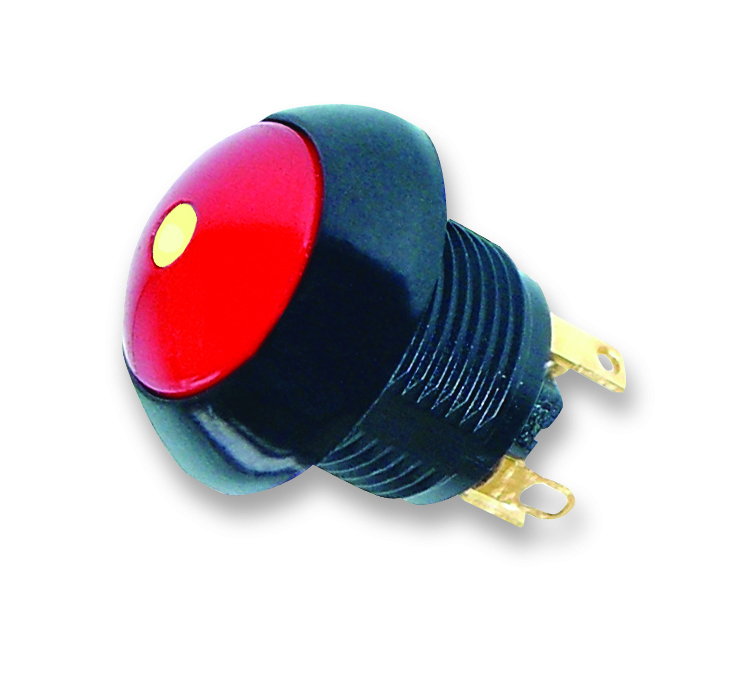

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D3111J22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP7-D3111J22

Detailed Description

Introducing the LP7-D Illuminated Dome Pushbutton Switch, crafted for seamless panel mounting. This high-performance switch features a durable aluminum housing with a sleek black finish, ensuring both reliability and style. The flush dome lightpipe button, made of thermoplastic, offers tactile feedback and precise actuation. With an IP6K4S rating, it guarantees protection against dust and water ingress, making it ideal for various industrial applications. The blue LED illumination, powered by a 12V voltage, not only enhances visibility but also adds a touch of sophistication. With a 50,000-cycle durability rating and gold-plated contacts, it guarantees long-lasting performance. Operating in temperatures ranging from -40°C to 85°C, and compatible with both AC (115V) and DC (28V) circuits, this switch is versatile and reliable. Perfect for aerospace, defense, and industrial settings, the LP7-D3111J22 is the ultimate choice for demanding environments. Upgrade your control systems with this premium sealed pushbutton switch.
