LP7-D3131J22

OTTLP7_D3131J22
Heilind Number:OTTLP7-D3131J22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D3131J22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

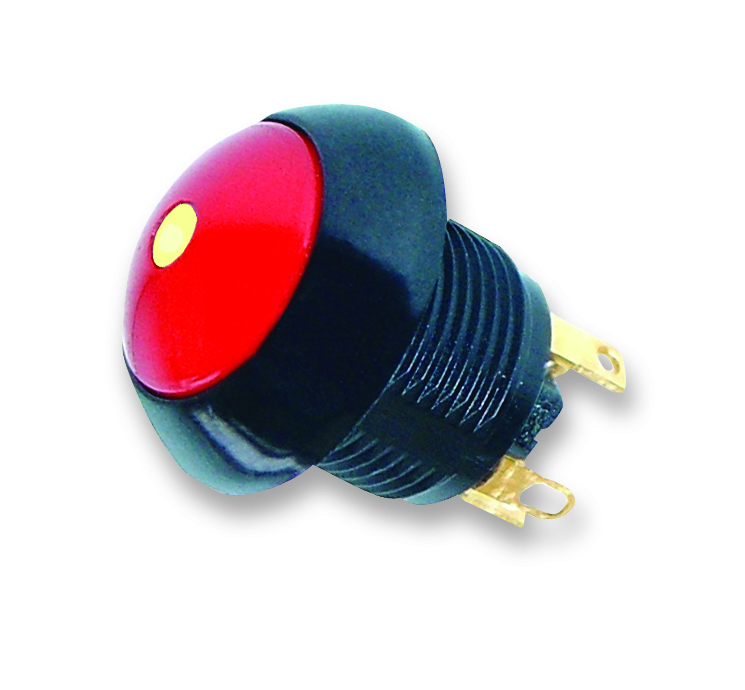

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D3131J22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP7-D3131J22

Detailed Description

The LP7-D3131J22 is a highly durable and reliable pushbutton switch designed for demanding environments. Featuring a sleek black aluminum housing with a flush dome lightpipe button, this switch not only offers a modern aesthetic but also ensures easy actuation. Its sealed construction, with an IP6K4S rating, provides protection against dust and water ingress, making it ideal for industrial applications. The blue illuminated button, powered by a 12V voltage, enhances visibility in low-light conditions. With a current rating of 5A and a contact configuration of SPDT, it offers versatility in wiring setups. Gold-plated contacts and silver contact material guarantee excellent conductivity, while a 50,000 cycle durability rating ensures long-lasting performance. Whether used in aerospace, transportation, or industrial machinery, the LP7-D3131J22 is a dependable choice for critical operations.
