LP7-D3211C22

OTTLP7_D3211C22
Heilind Number:OTTLP7-D3211C22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D3211C22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

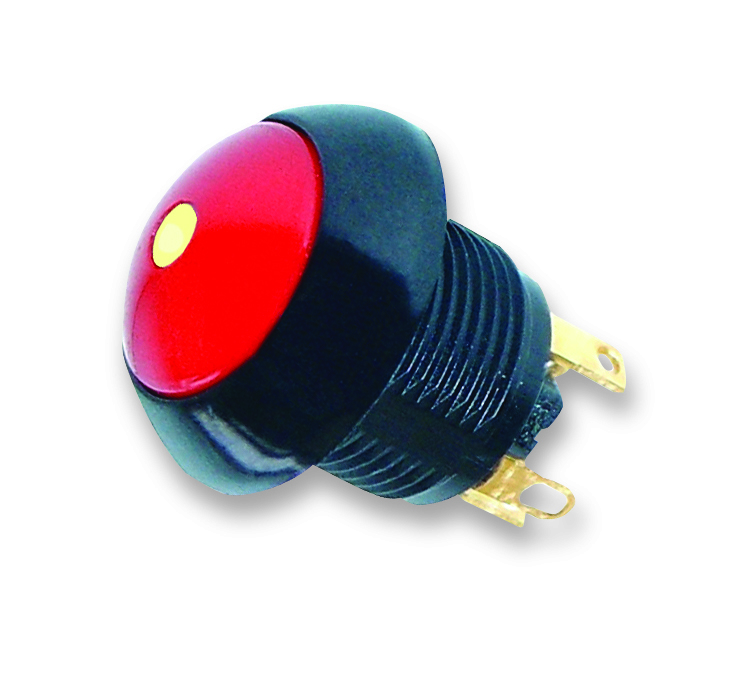

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D3211C22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP7-D3211C22

Detailed Description

Introducing the LP7-D3211C22, a high-performance Illuminated Dome Pushbutton Switch designed for seamless panel mounting in industrial applications. This sleek black switch boasts an IP6K8S rating, ensuring durability even in harsh environments. The flush dome lightpipe actuator, featuring gold-plated contacts and silver contact material, guarantees reliable operation with a 5A current rating. With an amber illumination color and a low 2V illumination voltage, this switch offers clear visibility. Its SPST-NO contact configuration and Off-(On) switch function provide versatile functionality. Constructed with aluminum housing and thermoplastic actuator material, it can withstand temperatures ranging from -40°C to 85°C. Ideal for use in control panels, machinery, and automotive systems, the LP7-D3211C22 is the epitome of quality and performance in pushbutton switches.
