LP7-D3231C22

OTTLP7_D3231C22
Heilind Number:OTTLP7-D3231C22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D3231C22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

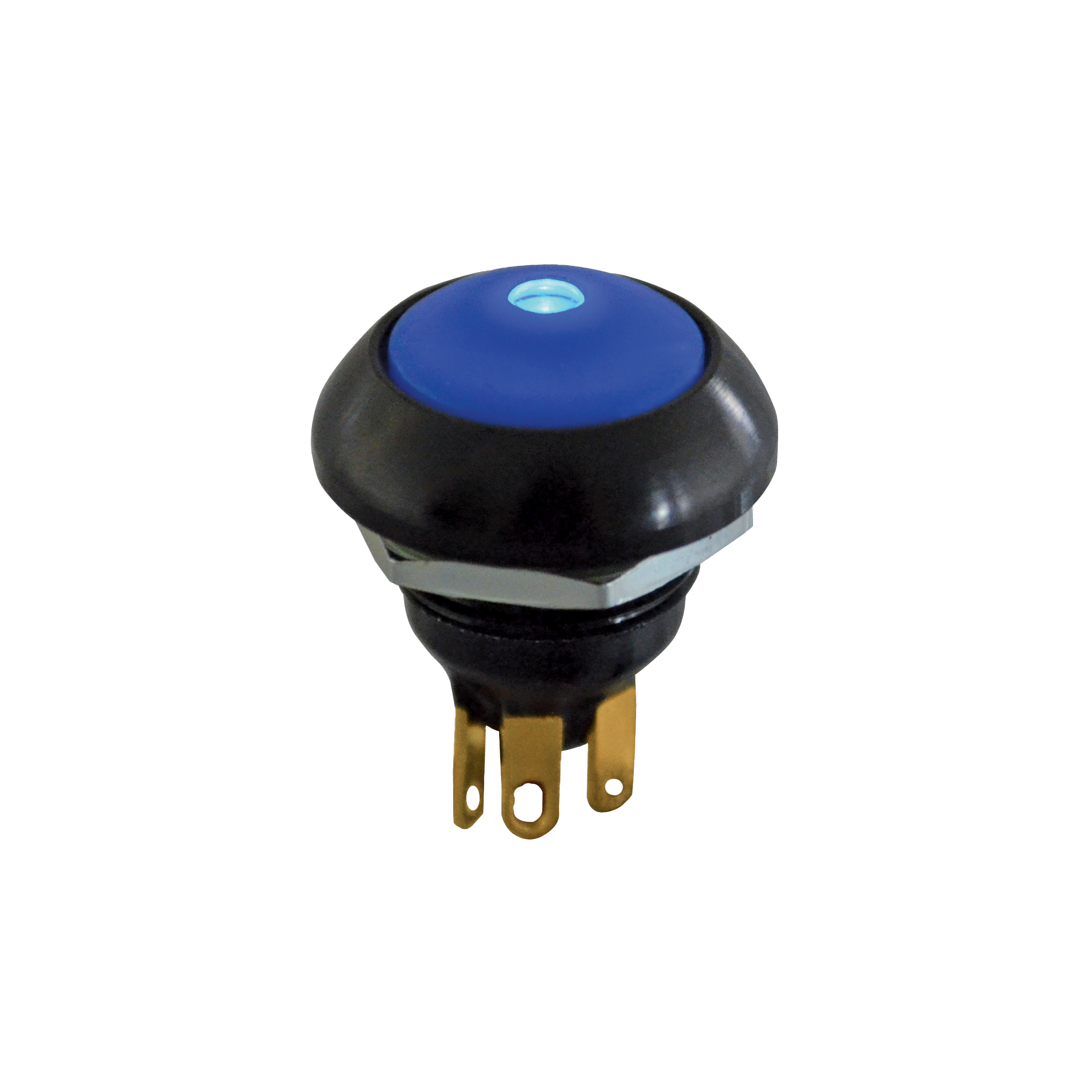

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D3231C22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP7-D3231C22

Detailed Description

Introducing the LP7-D Series Illuminated Dome Pushbutton Switch, a high-performance component designed for reliable operation in demanding environments. Featuring a sleek black aluminum housing with IP6K8S sealing, this switch ensures durability and protection against dust and water ingress. The flush dome lightpipe button, crafted from thermoplastic, offers a smooth actuation experience. With a contact rating of 5A, gold-plated contacts, and a SPDT configuration, it guarantees efficient electrical connectivity. The amber illumination, powered by a 2V source, enhances visibility. Rated for 50,000 cycles and with an operating temperature range from -40°C to 85°C, it is suitable for a wide range of applications. Ideal for panel mounting with solder termination, this switch is a versatile solution for industrial and commercial use.
