LP7-D4211B22

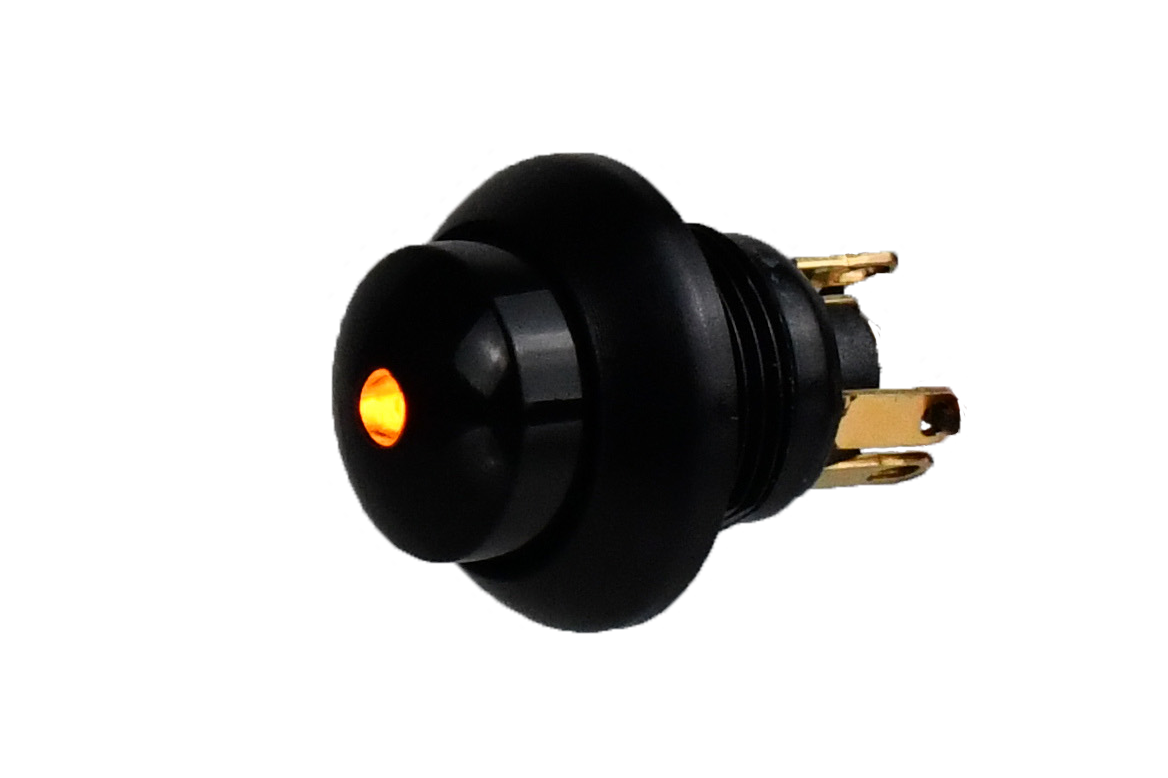

OTTLP7_D4211B22
Heilind Number:OTTLP7-D4211B22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D4211B22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D4211B22
Series:LP7-D
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome Matte)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.2 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Silver
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTLP7-D4211B22

Detailed Description

Introducing the LP7-D Series Illuminated Dome Pushbutton Switch ( LP7-D4211B22), a premium-quality component designed for precise control in various applications. Featuring a sleek black aluminum housing with a matching panel mount and raised dome matte button, this switch offers tactile feedback and durability for up to 50,000 cycles. The green illuminated button, powered by a low 2V voltage, ensures clear visibility in any environment. With a gold-plated contact and silver contact material, the SPST-NO configuration guarantees reliable performance. Operating flawlessly between -40°C to 85°C, and rated at 5A for both AC and DC voltages up to 115VAC and 28VDC, respectively, this switch is suitable for diverse industrial settings. With an IP6K8S rating, it's also sealed against dust and water ingress, making it ideal for use in challenging conditions. Upgrade your control systems with the LP7-D Series Pushbutton Switch for unparalleled performance and longevity.
