LP7-D5111F22

OTTLP7_D5111F22
Heilind Number:OTTLP7-D5111F22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D5111F22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

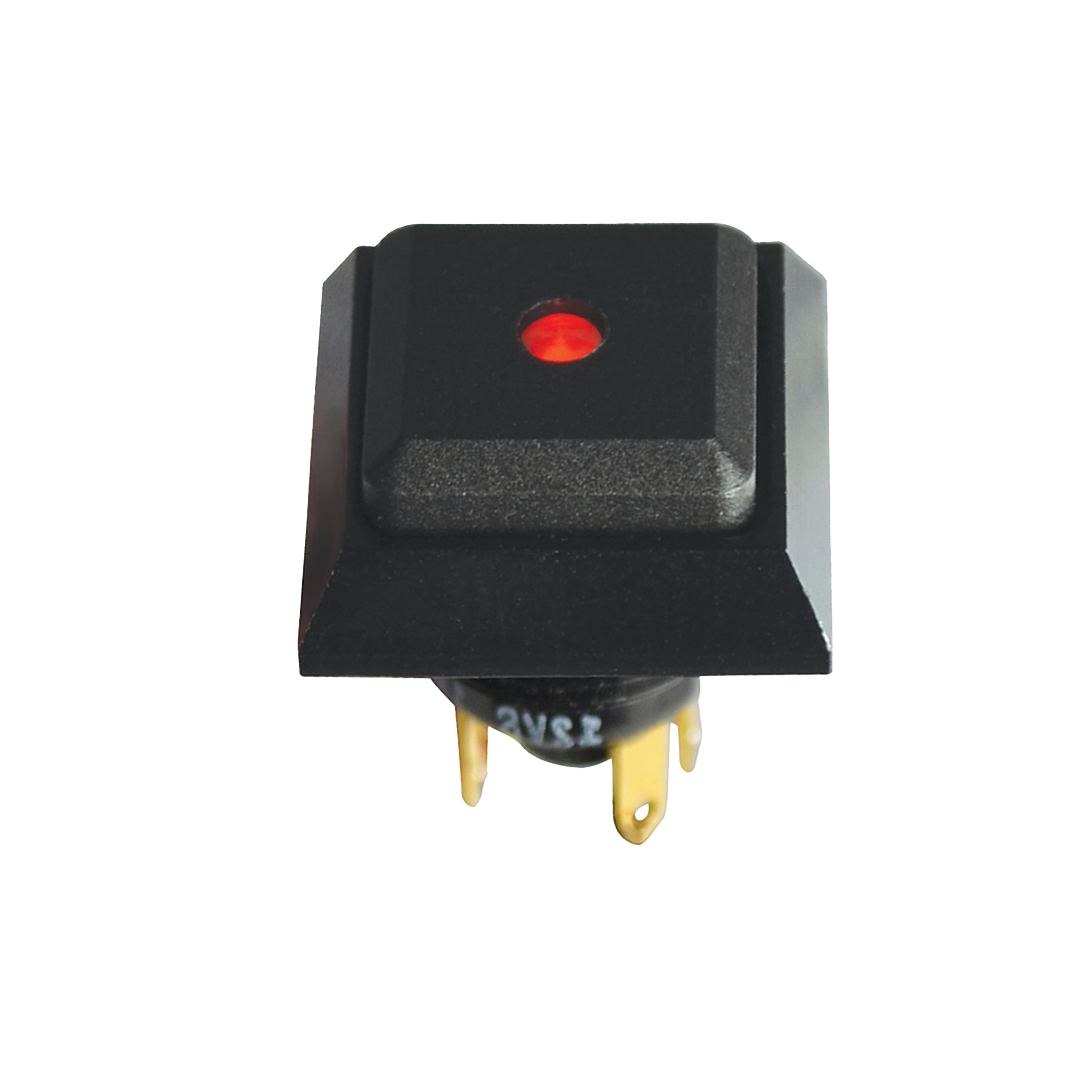

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D5111F22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Square Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Square
Cap Color:Black
Actuator Length:.11 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP7-D5111F22

Detailed Description

Introducing the LP7-D5111F22, a high-performance illuminated dome pushbutton switch designed for durability and reliability in demanding environments. Featuring a black aluminum housing with an IP6K4S ingress protection rating, this switch is built to withstand harsh conditions. The illuminated red button, with a raised square lightpipe actuator made of thermoplastic, ensures easy visibility and operation. The SPST-NO contact configuration with silver contacts and gold plating guarantees efficient electrical performance. With a 5A current rating, 115VAC/28VDC voltage ratings, and a wide operating temperature range from -40°C to 85°C, this switch is suitable for various applications. Its panel mount installation and solder termination make it easy to integrate. Ideal for use in industrial, automotive, and aerospace settings, the LP7-D5111F22 offers a lifespan of 50,000 cycles, providing long-lasting functionality. Upgrade your control systems with this reliable and versatile pushbutton switch.
