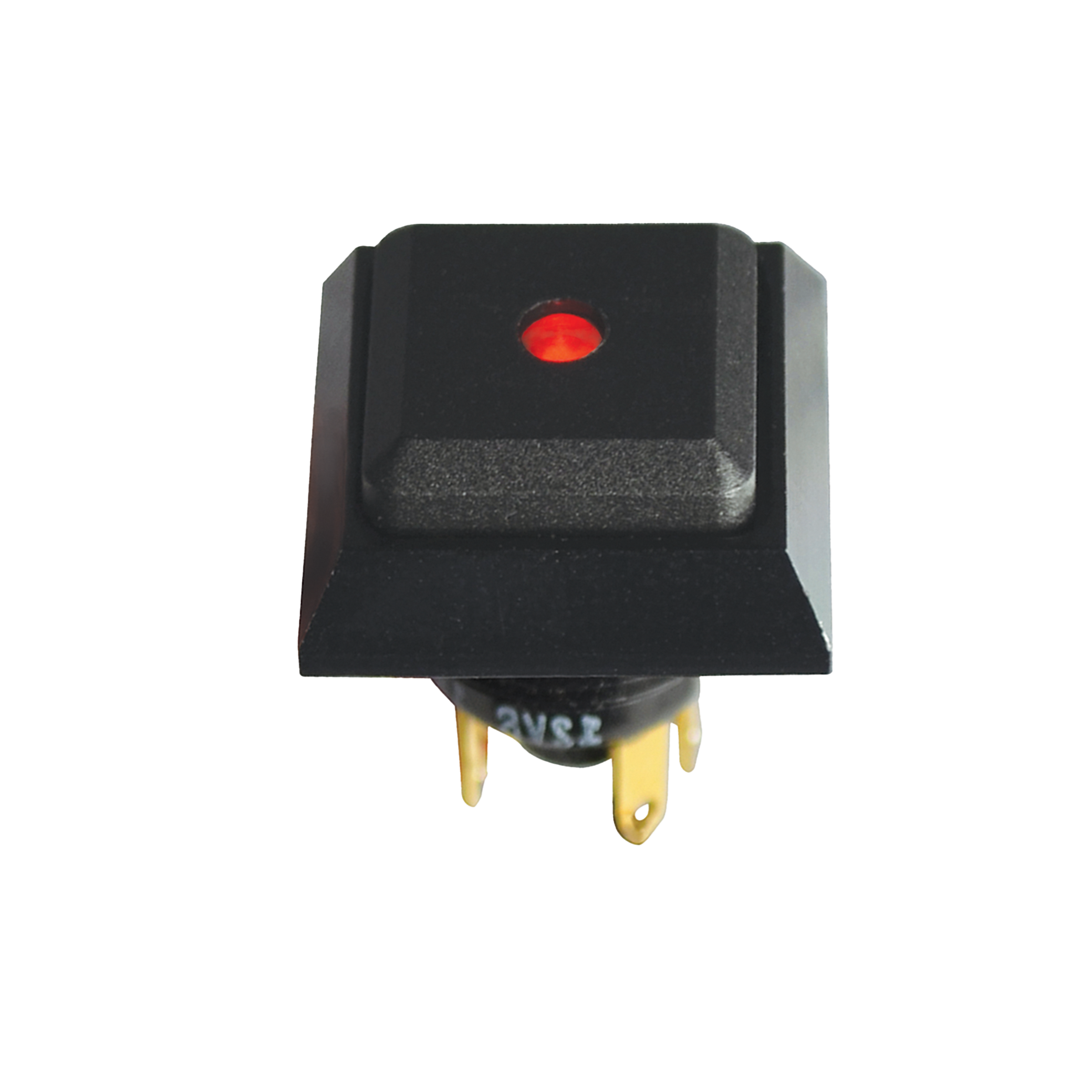

LP7-D5111J26

OTTLP7_D5111J26
Heilind Number:OTTLP7-D5111J26
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D5111J26
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D5111J26
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Square Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Square
Cap Color:Blue
Actuator Length:.11 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP7-D5111J26

Detailed Description

Introducing the LP7-D5111J26, a high-performance illuminated dome pushbutton switch designed for reliability and durability. Featuring a sleek black casing and a vibrant blue LED illumination, this switch not only adds a touch of modernity to any panel but also ensures clear visibility in any environment. With an IP6K4S rating, it guarantees protection against dust and water ingress, making it suitable for a wide range of applications. The gold-plated contacts and silver contact material ensure excellent conductivity, while the thermoplastic actuator and aluminum housing guarantee long-lasting performance. Ideal for panel mounting, this switch offers a contact configuration of SPST-NO and a current rating of 5A, with a voltage rating of 115VAC and 28VDC. Whether used in industrial machinery or consumer electronics, the LP7-D5111J26 is the perfect choice for high-quality, illuminated switching needs.
