LP7-D5112F12

OTTLP7_D5112F12
Heilind Number:OTTLP7-D5112F12
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D5112F12
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

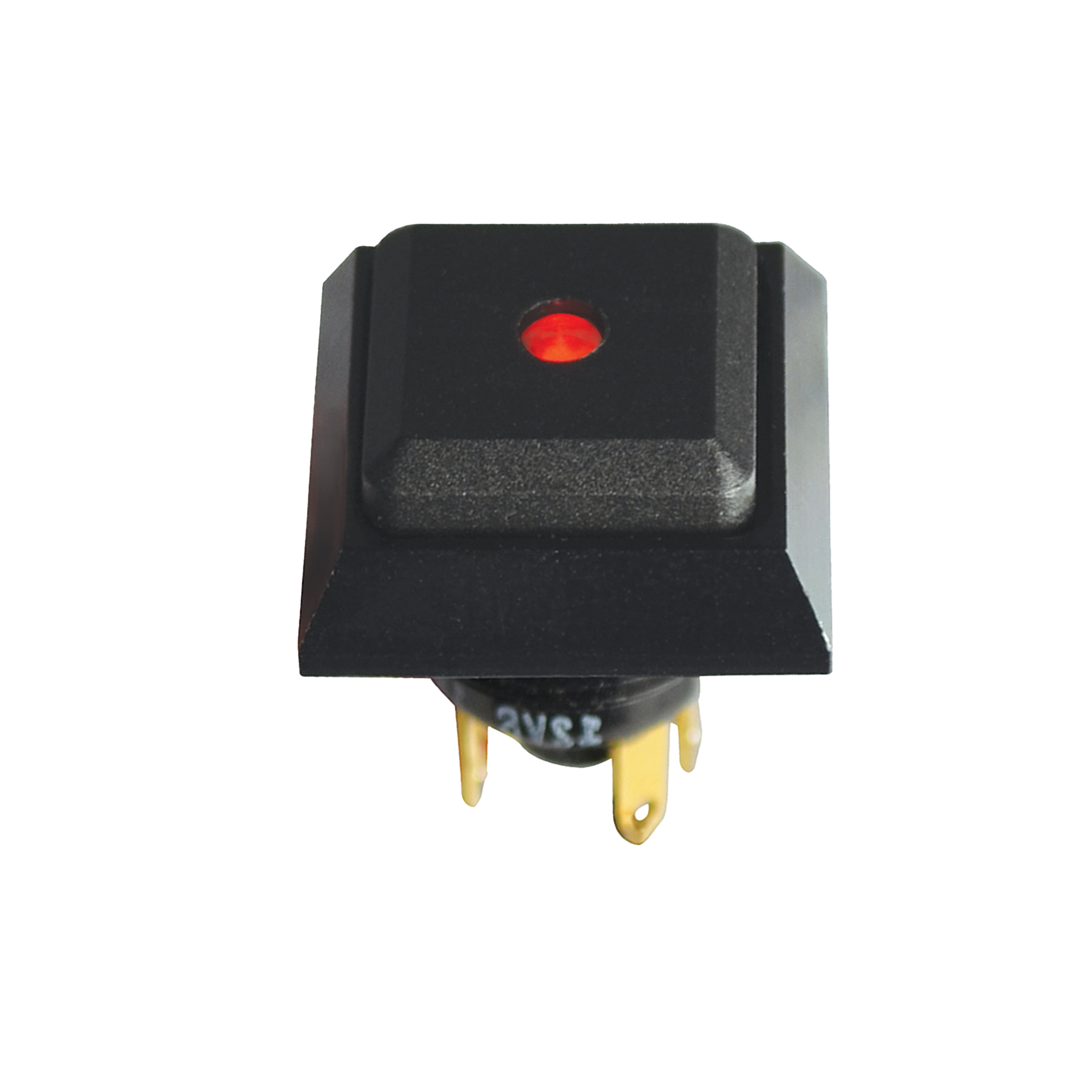

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D5112F12
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Square Lightpipe)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Square
Cap Color:Black
Actuator Length:.11 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):1,000,000 Cycles
Mounting Style:Panel Mount
Current Rating:1 - 100 mA
Voltage Rating (DC):1 - 28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP7-D5112F12

Detailed Description

Introducing the LP7-D5112F12, a high-performance illuminated dome pushbutton switch designed for seamless panel mounting. With a sleek silver case and a bold black cap, this switch not only enhances the aesthetics of any application but also delivers reliable functionality. The raised square lightpipe actuator, with an actuator length of .11 inches, provides tactile feedback and easy operation. Featuring a durable aluminum housing and gold-plated contacts, it ensures longevity even in demanding environments. The switch is sealed and rated for IP6K4S, making it resistant to dust and water ingress. Its SPST-NO contact configuration and Off-(On) switch function offer precise control, while the red illumination, powered by 12V DC, adds a visual indicator. Rated for 1-100mA current and 1-28VDC voltage, with a temperature range of -40°C to 85°C, this switch is suitable for a wide range of applications. With a durability rating of 1,000,000 cycles, it guarantees long-term performance. Upgrade your control systems with the LP7-D5112F12 and experience reliability and precision like never before.
