LP7-D6131F2A

OTTLP7_D6131F2A
Heilind Number:OTTLP7-D6131F2A
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D6131F2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

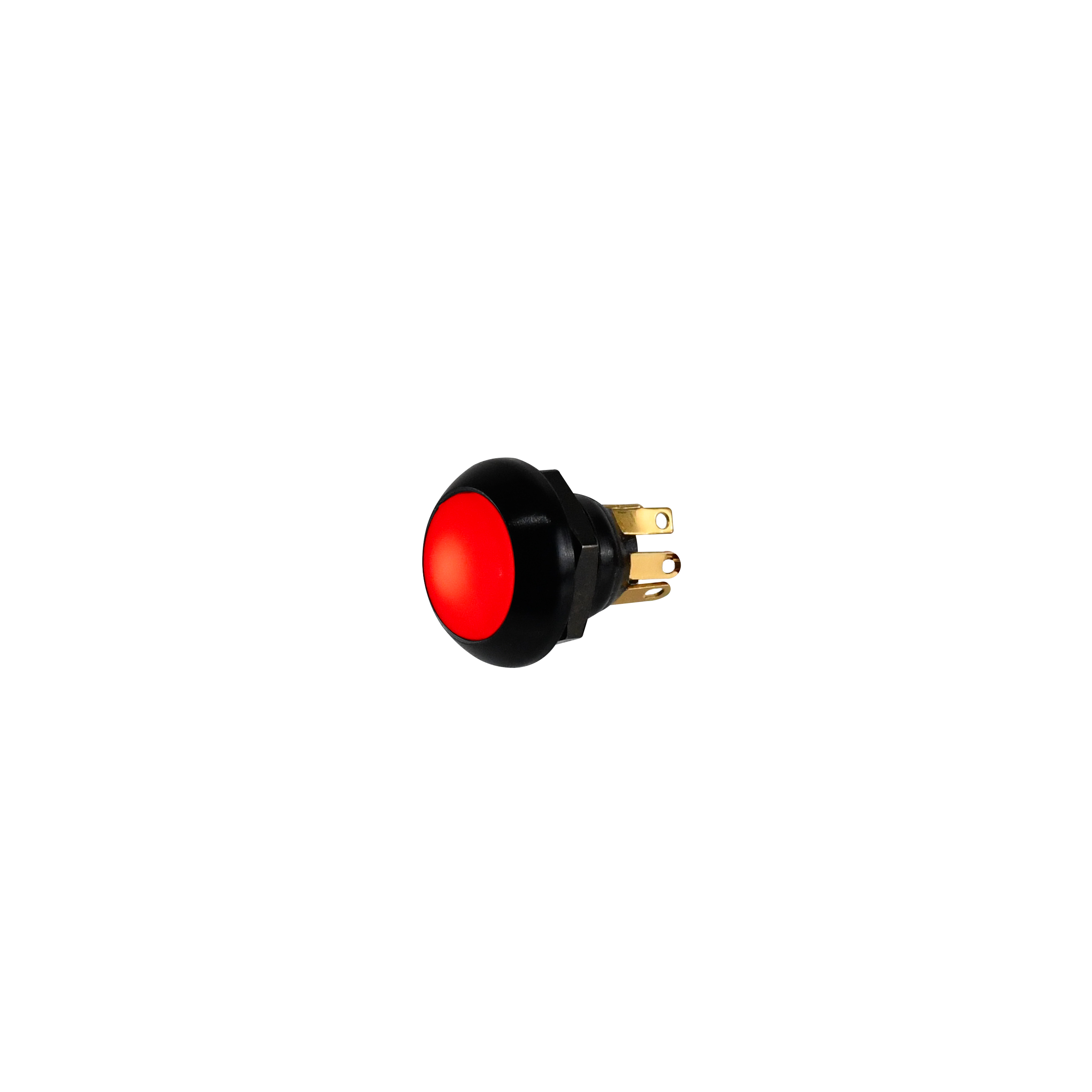

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D6131F2A
Series:LP7-D
Cap Color:White - Translucent
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flush Dome Lightpipe)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.27 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Silver
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTLP7-D6131F2A

Detailed Description

Introducing the LP7-D6131F2A Illuminated Dome Pushbutton Switch, a high-performance panel mount switch designed for durability and reliability in various applications. Featuring a sleek black aluminum case with a white translucent cap, this switch offers a modern and professional look. The flush dome lightpipe actuator, made of thermoplastic, ensures smooth and responsive operation. With an IP6K4S rating, it is resistant to dust and water ingress, making it suitable for outdoor and industrial use. The red illuminated button, powered by a 12V voltage, provides clear visual feedback. Its SPDT contact configuration and silver contact material guarantee efficient electrical conductivity. Rated for 50,000 cycles, this switch is built to last, with a wide operating temperature range from -40°C to 85°C. Whether for consumer electronics, automotive, or aerospace applications, the LP7-D6131F2A is a versatile and dependable choice.
