LP7-D6211E2A

OTTLP7_D6211E2A
Heilind Number:OTTLP7-D6211E2A
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D6211E2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

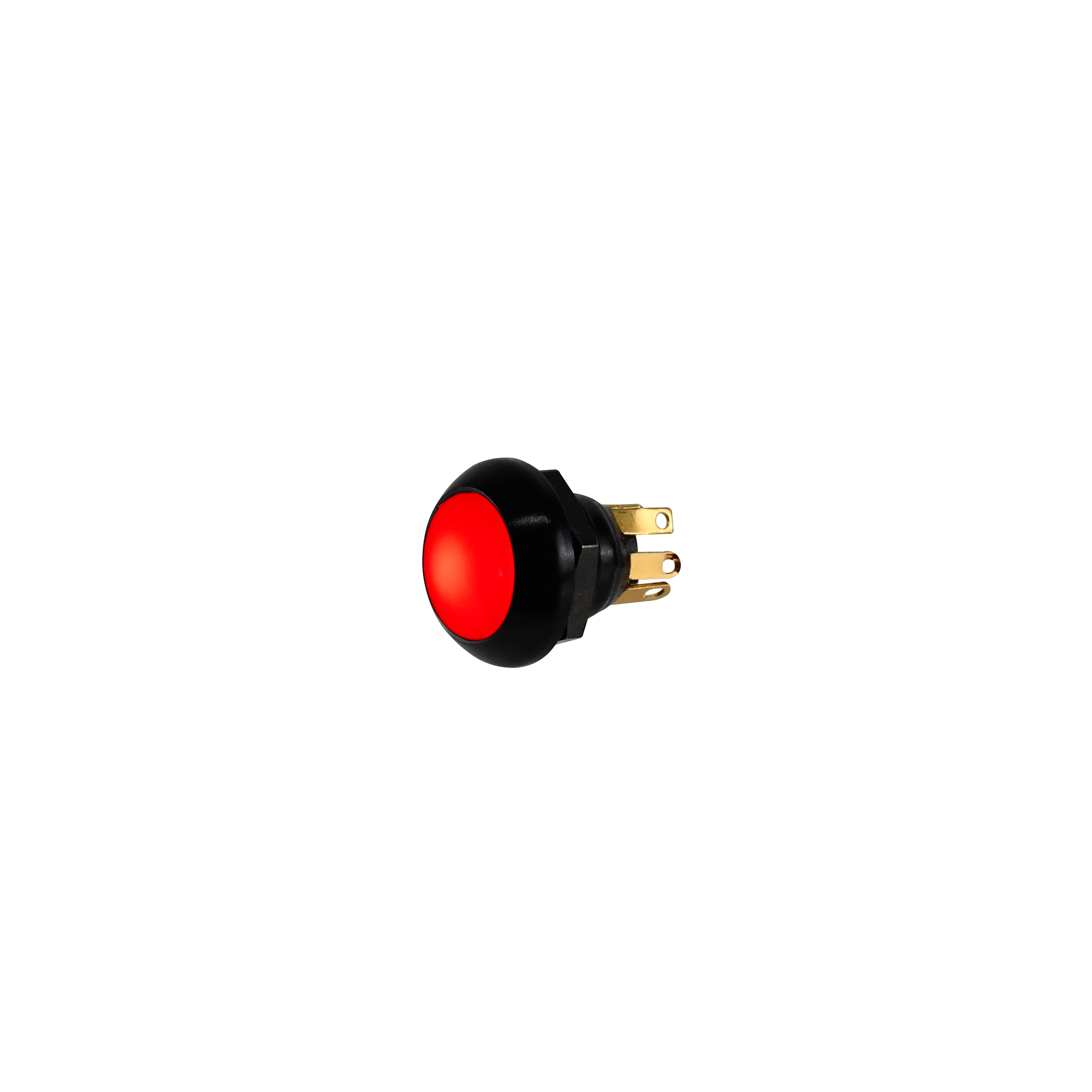

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D6211E2A
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:2 V
SKU:OTTLP7-D6211E2A

Detailed Description

Introducing the LP7-D Series Illuminated Dome Pushbutton Switch with SKU LP7-D6211E2A, a reliable and versatile component for your control panel needs. Featuring a sleek design with a White-Translucent cap and Black housing, this switch offers a high level of durability with a rating of 50,000 cycles. The Illuminated Button, crafted from Thermoplastic, provides a visually appealing and functional interface, perfect for low-light environments. With an IP6K8S rating for dust and water resistance, along with gold-plated contacts and silver contact material, it ensures reliable performance even in harsh conditions. The SPST-NO contact configuration and Off-(On) switch function offer precise control, while the 5A current rating and AC/DC voltage ratings make it suitable for a wide range of applications. Panel mountable and with solder termination, installation is a breeze. Whether in industrial machinery, automotive, or aerospace settings, this sealed pushbutton switch guarantees seamless operation. Upgrade your control system with the LP7-D6211E2A for efficiency and reliability.
