LP9-11112B22

OTTLP9_11112B22
Heilind Number:OTTLP9-11112B22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-11112B22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

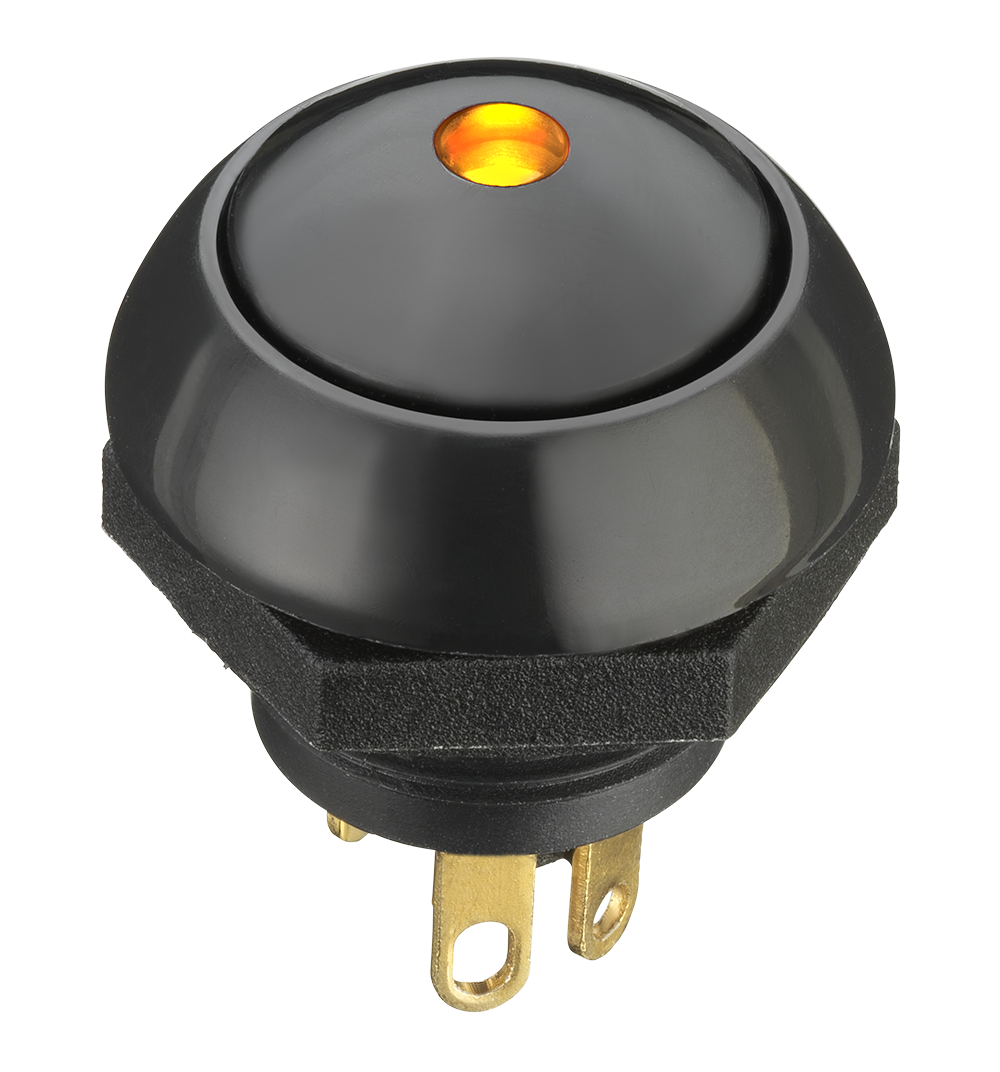

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-11112B22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP9-11112B22

Detailed Description

The LP9 series Illuminated Dome Pushbutton Switch in Black features a sleek design for panel mounting applications. With an IP6K8S ingress protection rating and a durable thermoplastic housing, this sealed switch is ideal for demanding environments. The green illuminated button, with a flush dome lightpipe actuator, provides clear visual feedback. Operating at 115 VAC or 28 VDC, with a 5A current rating, it offers reliable performance. The SPST-NO contact configuration and gold-plated brass contacts ensure high conductivity and longevity. Suitable for a wide temperature range from -55°C to 85°C, this switch guarantees functionality in diverse conditions. Perfect for industrial and commercial use, it boasts a 25,000-cycle durability rating, making it a dependable choice in applications where precision control and visibility are essential.
