Description:

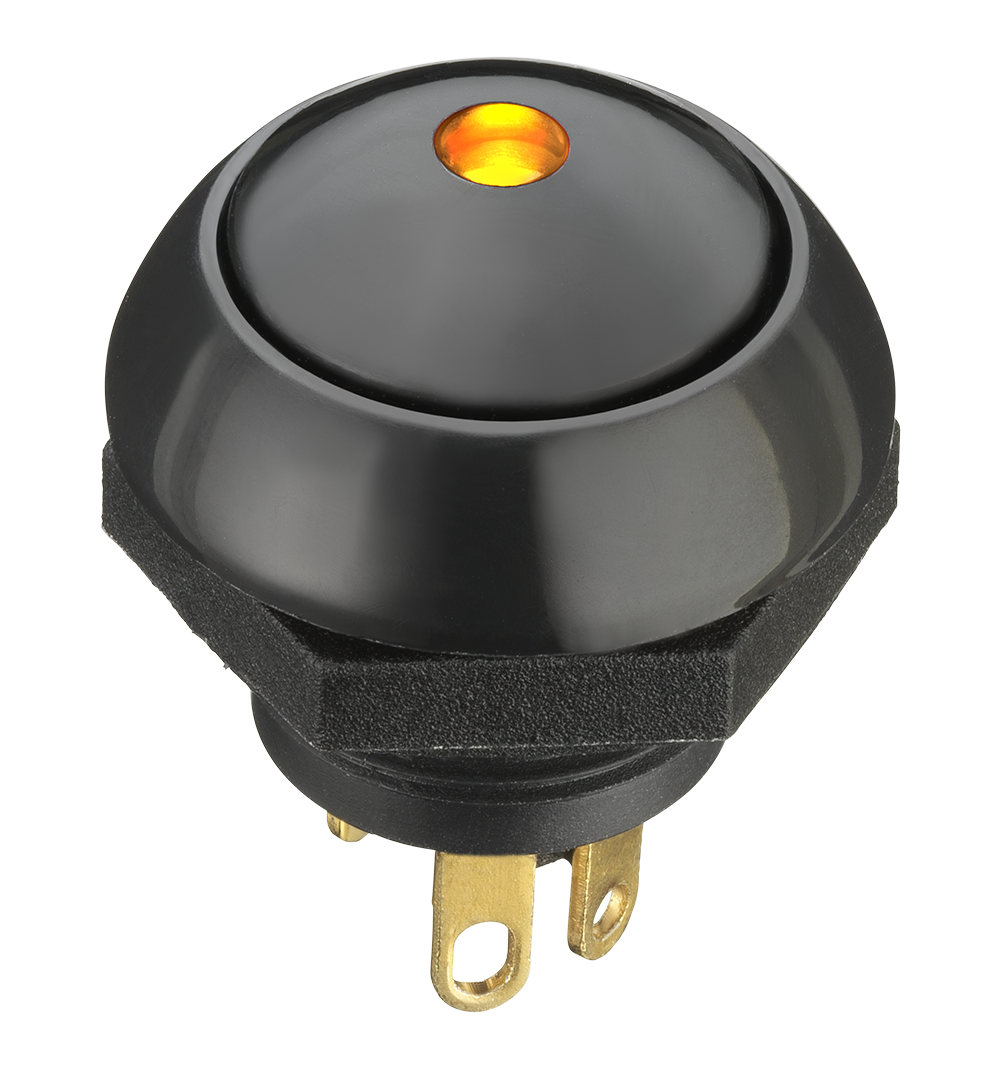

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-11131F23
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Orange
Actuator Length:.27 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-11131F23

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, featuring a sleek design with a round, orange-flushed dome lightpipe actuator for enhanced visibility. With an IP6K8S sealing rating and durable thermoplastic housing in black, this switch ensures reliability in various environments. The illuminated red LED, powered by a 12V voltage, provides clear indication of operation. The SPDT contact configuration with gold plating on brass offers efficient conductivity, suitable for a current rating of 5A at 115VAC or 28VDC. Ideal for panel mounting with solder termination, this switch guarantees ease of installation. Operating between -55°C to 85°C, and rated for 25,000 cycles, it ensures long-lasting performance. Perfect for applications requiring a sealed, high-quality pushbutton switch, the LP9 LP911131F23 is a standout choice in the realm of switches.
