LP9-21111A22

OTTLP9_21111A22
Heilind Number:OTTLP9-21111A22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111A22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

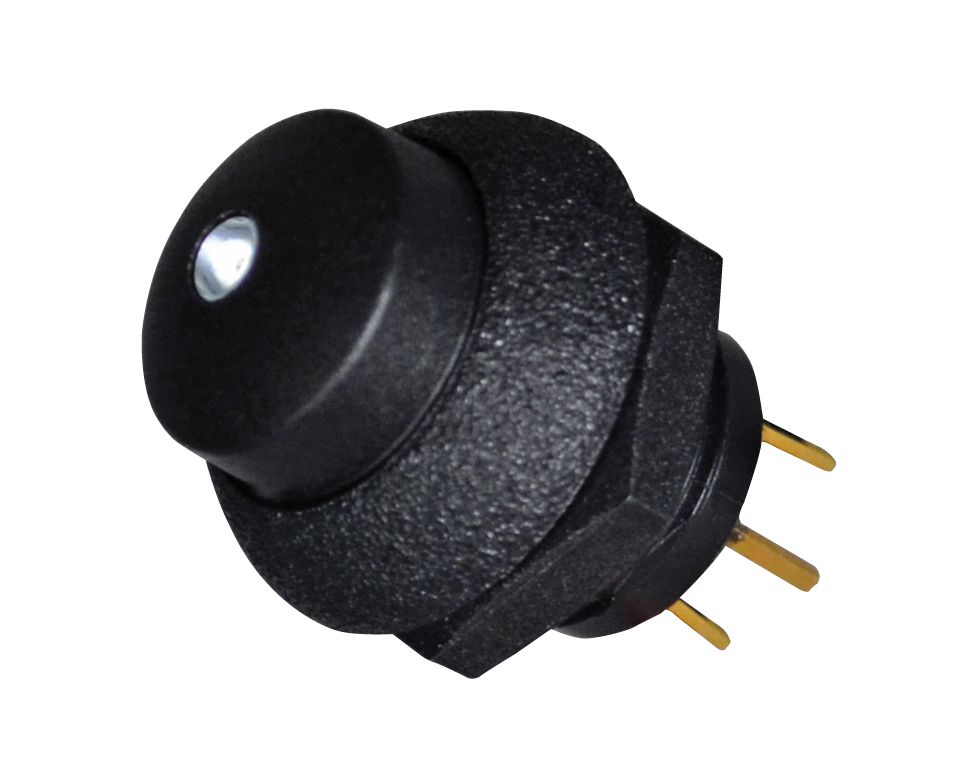

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111A22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP9-21111A22

Detailed Description

Introducing the LP9 series LP921111A22 Illuminated Dome Pushbutton Switch, a high-performance panel-mount switch designed for demanding environments. Featuring a durable black thermoplastic housing and a sleek black cap, this switch offers exceptional durability with a rating of 25,000 cycles. The raised dome lightpipe button, made of thermoplastic, ensures reliable actuation with a round shape and a length of .39 inches. With a gold-plated brass contact configuration of SPST-NO, this switch guarantees a current rating of 5A at 115VAC or 28VDC. Its IP6K8S sealing and solder termination make it suitable for a wide range of applications. The switch illuminates in a vivid red color, drawing attention to its off-(on) function. Operating smoothly in temperatures ranging from -55°C to 85°C, it is ideal for use in various industries. Trust the LP921111A22 for dependable performance in your projects.
