LP9-21111B25

OTTLP9_21111B25
Heilind Number:OTTLP9-21111B25
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111B25
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

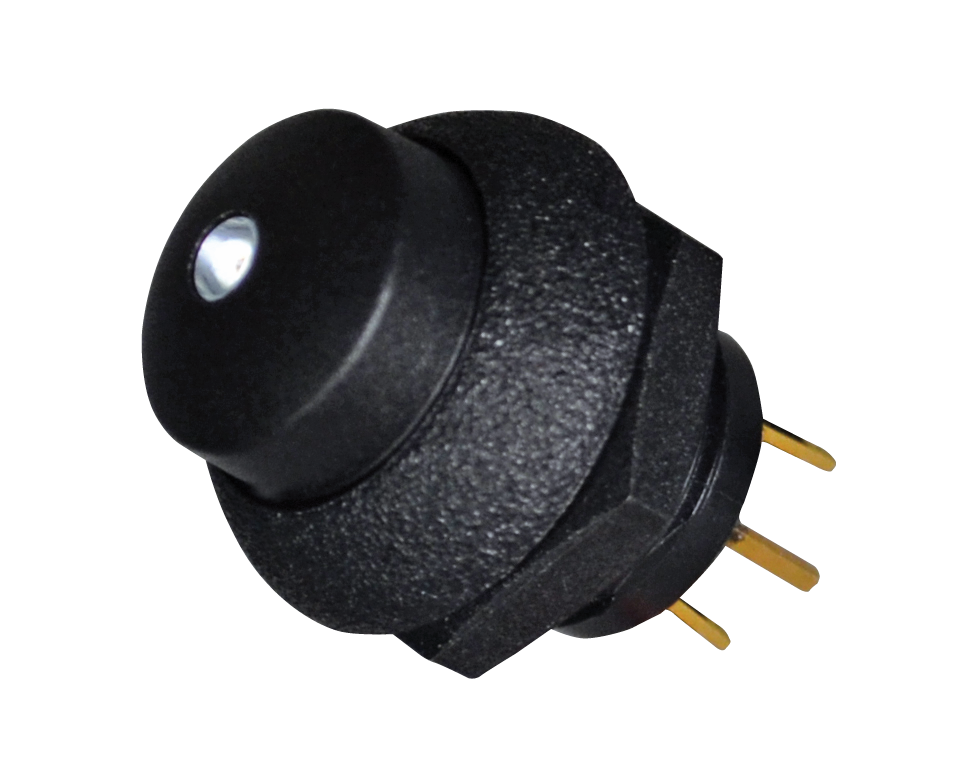

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111B25
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Green
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP9-21111B25

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, a high-performance electronic component designed for seamless panel mounting applications. Featuring a durable black housing with a green cap, this switch boasts an IP6K8S sealing rating, ensuring reliable operation even in harsh environments. The raised dome actuator, crafted from thermoplastic, offers a tactile button experience with an actuator length of .39 inches. Gold-plated contacts and brass contact material guarantee excellent conductivity, while the SPST-NO contact configuration supports Off-(On) switch functionality. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of electrical systems. Its illuminated design, with a low 2V illumination voltage, provides clear visual feedback in green color. With a durability rating of 25,000 cycles and an operating temperature range from -55°C to 85°C, this switch combines performance and reliability, making it ideal for various industrial and commercial applications. Upgrade your control panel with the LP9-21111B25 for efficient and intuitive operation.
