LP9-21111B29

OTTLP9_21111B29
Heilind Number:OTTLP9-21111B29
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111B29
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

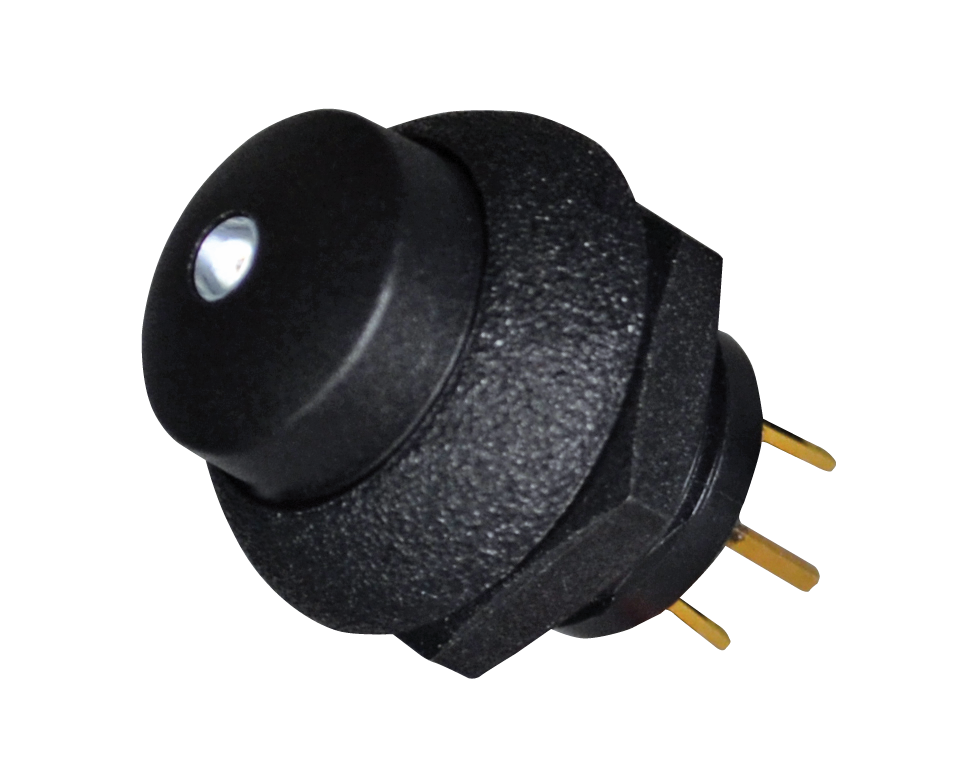

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111B29
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP9-21111B29

Detailed Description

The LP9 series presents the LP9-21111B29, an advanced Illuminated Dome Pushbutton Switch designed for precision and durability. With a sleek black case housing and a white button cap, this switch offers a modern aesthetic perfect for any panel mount application. Featuring an IP6K8S rating, it ensures protection against dust and water ingress, making it suitable for a wide range of environments. The green LED illumination, powered by 2V, guarantees clear visibility in low-light conditions. Crafted with high-quality materials including gold-plated brass contacts and thermoplastic housing, it boasts a durability rating of 25,000 cycles. Operating smoothly in temperatures ranging from -55°C to 85°C, this SPST-NO switch with a 5A current rating is ideal for various industrial and commercial settings where reliable performance is paramount.
