LP9-21111D26

OTTLP9_21111D26
Heilind Number:OTTLP9-21111D26
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111D26
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

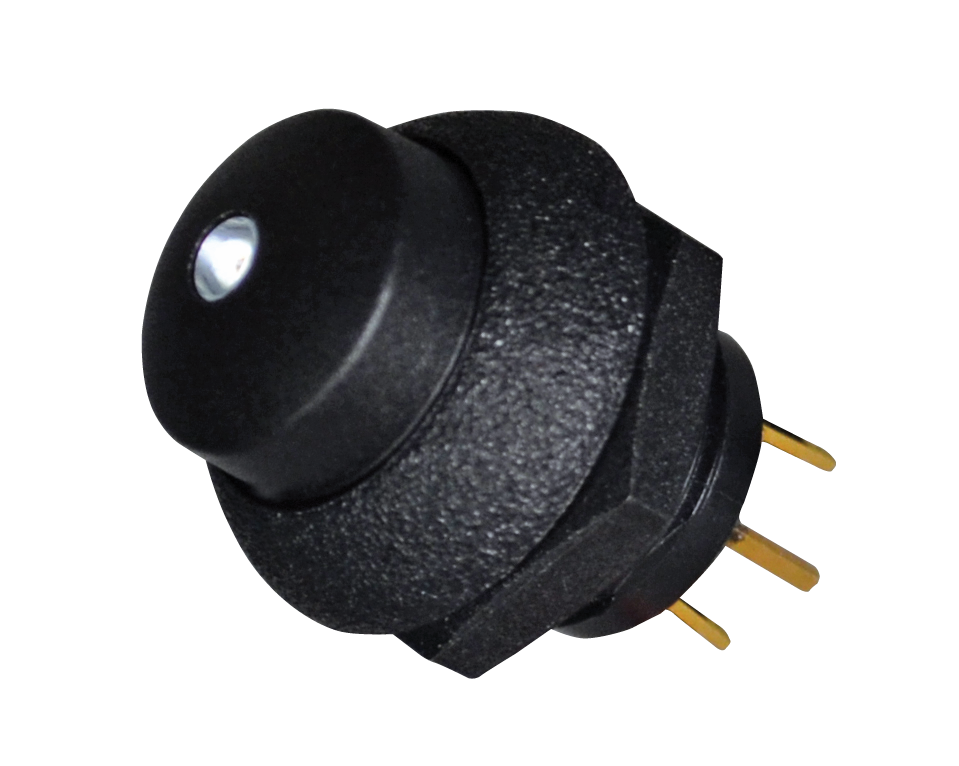

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111D26
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP9-21111D26

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, SKU LP9-21111D26, designed for reliable performance in demanding environments. Featuring a sleek black case with a striking blue cap, this switch combines durability with a modern aesthetic. The button actuator, crafted from thermoplastic material and boasting a raised dome lightpipe, offers a comfortable and efficient user experience. With an IP6K8S rating for dust and water resistance, along with a sealed design, it ensures long-lasting functionality. Gold-plated brass contacts guarantee optimal conductivity, while the SPST-NO configuration and Off-(On) switch function provide versatile control. Operating at temperatures ranging from -55°C to 85°C, and with a voltage rating of 115VAC/28VDC, this switch is suitable for a wide range of applications. Ideal for panel mounting with solder termination, it offers easy installation. Illuminate your control panel with the vibrant blue LED, powered at 2V, and enjoy a lifespan of up to 25,000 cycles, making it a reliable choice for any project.
