LP9-21111E22

OTTLP9_21111E22
Heilind Number:OTTLP9-21111E22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111E22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

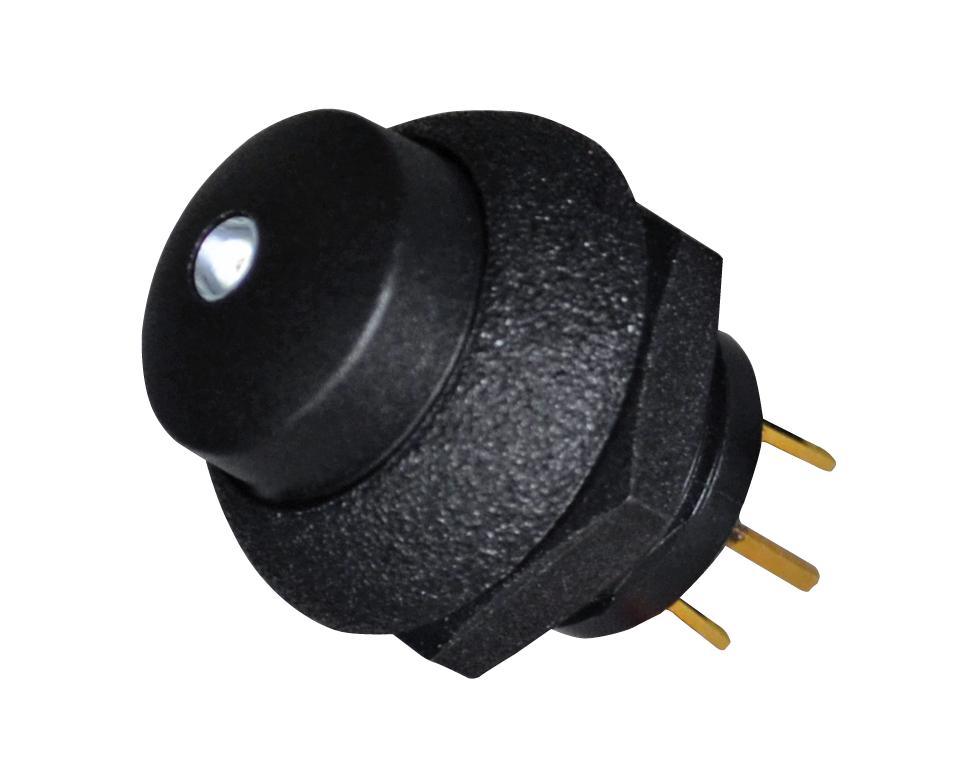

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111E22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:2 V
SKU:OTTLP9-21111E22

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, LP9-21111E22. This sleek and durable switch features a black cap and case, with a raised dome lightpipe actuator for easy visibility. Boasting an IP6K8S sealing rating, it ensures reliable performance in harsh environments. The button operates on an Off-(On) switch function, with a 5A current rating and gold-plated brass contacts for optimal conductivity. Mounting is a breeze with its panel mount style, and solder termination. The white LED illumination, powered by a 2V voltage, adds a modern touch while enhancing visibility. With a wide temperature range from -55°C to 85°C, it's suitable for various applications. Trust in the LP9-21111E22 for premium quality and performance in your electronic systems.
