LP9-21111F21

OTTLP9_21111F21
Heilind Number:OTTLP9-21111F21
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111F21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

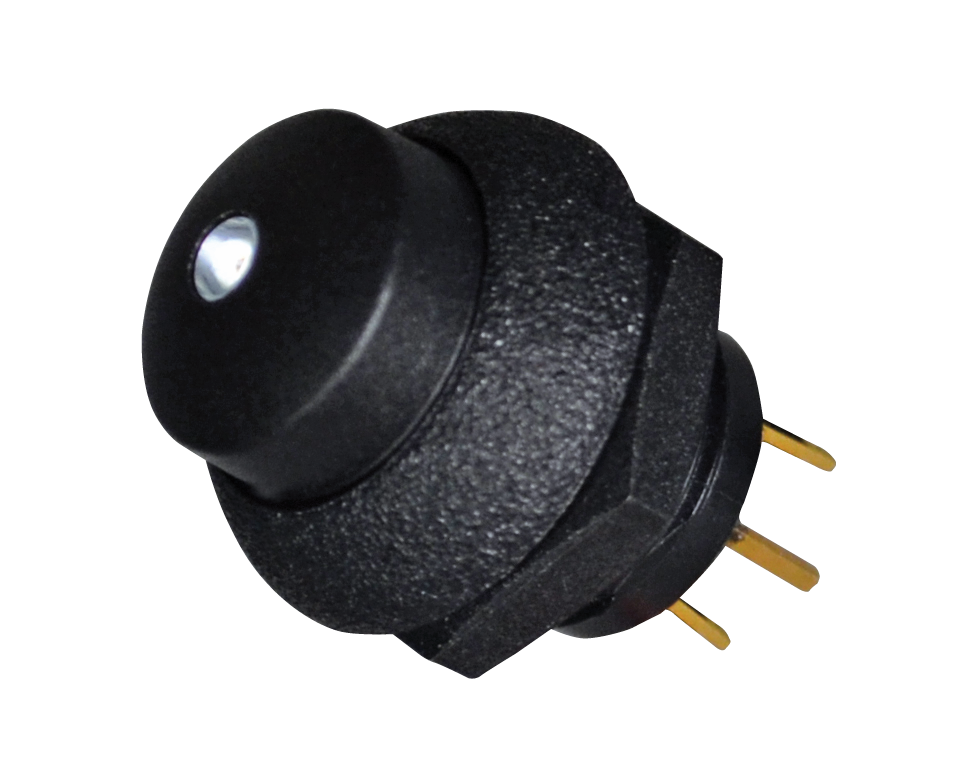

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111F21
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-21111F21

Detailed Description

The LP9 series Illuminated Dome Pushbutton Switch, LP9-21111F21, is a high-performance electronic component perfect for industrial applications. Featuring a durable construction with a Black Thermoplastic case and Red illuminated Button, this sealed switch is designed for reliable operation in harsh environments. With an IP6K8S rating, it offers excellent protection against dust and water ingress. The Raised Dome Lightpipe actuator, made of Thermoplastic material, ensures smooth and precise operation. Gold-plated Brass contacts guarantee efficient power transmission, with a 5A current rating for robust performance. Operating at temperatures ranging from -55°C to 85°C, and with a durability rating of 25,000 cycles, this switch is built to last. Suitable for panel mounting and solder termination, it provides easy installation. The SPST-NO contact configuration and Off-(On) switch function make it ideal for controlling power circuits. With voltage ratings of 115VAC and 28VDC, and an Illumination Voltage of 12V, it offers versatility in application. Whether in aerospace, automotive, or industrial machinery, the LP9 series switch delivers dependable performance.
