LP9-21111G22

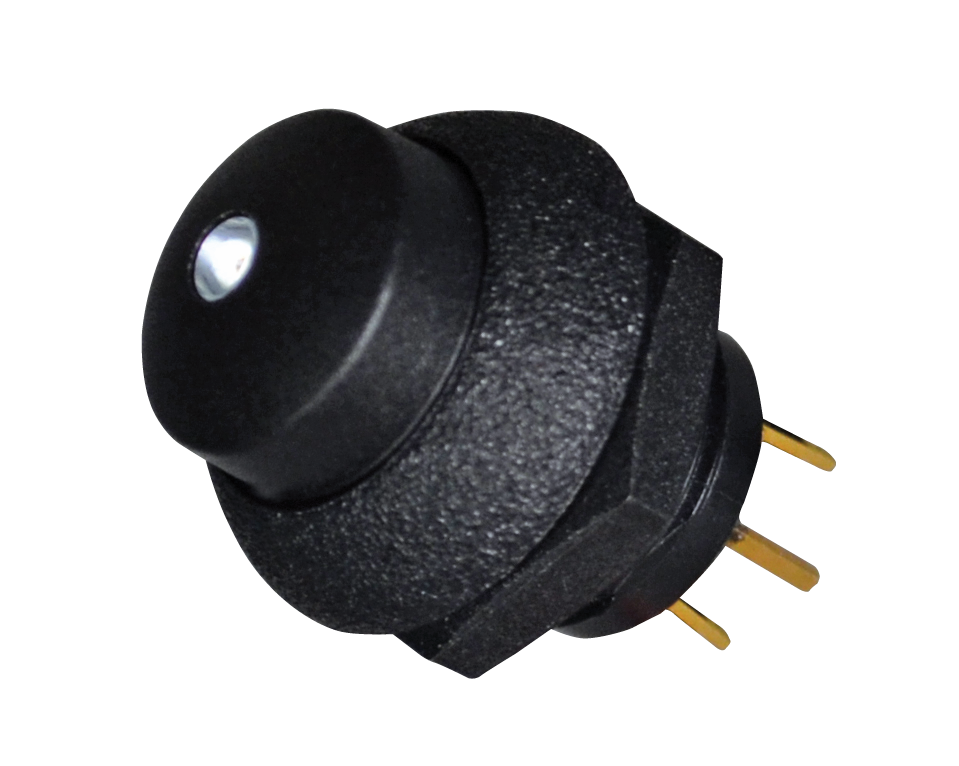

OTTLP9_21111G22
Heilind Number:OTTLP9-21111G22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111G22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111G22
Series:LP9
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome Lightpipe)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.39 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP9-21111G22

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch with SKU LP9-21111G22. This high-performance switch features a sleek black cap and case, designed for durability with a sealing rating of IP6K8S. The green illuminated button, with a raised dome lightpipe actuator, offers easy visibility in any environment. With a contact plating of gold and a current rating of 5A, this switch ensures reliable conductivity. Perfect for panel mounting, it has a thermoplastic housing and solder termination. Operating at temperatures ranging from -55°C to 85°C, and with a voltage rating of 115VAC/28VDC, it's suitable for various applications. The SPST-NO contact configuration and Off-(On) switch function provide versatile use. Trust in its 25,000 cycles durability and make it your go-to choice for high-quality switching needs.
