LP9-21131G21

OTTLP9_21131G21
Heilind Number:OTTLP9-21131G21
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21131G21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

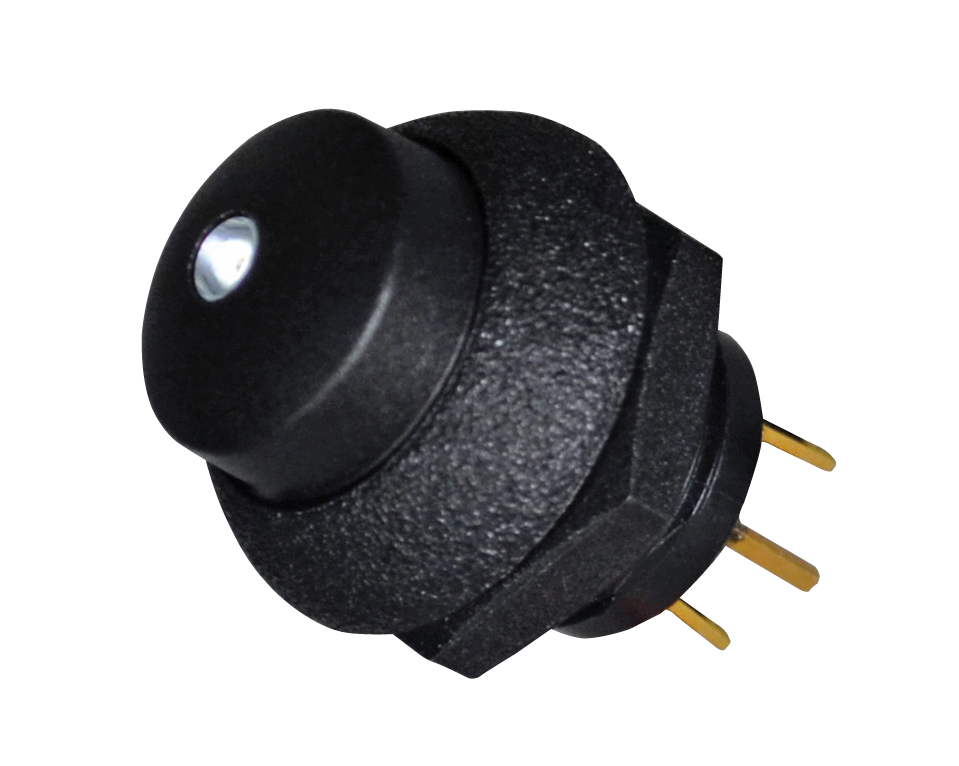

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21131G21
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.39 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP9-21131G21

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, a high-performance panel mount switch designed for durability and reliability in demanding environments. Featuring a raised dome lightpipe actuator in a sleek black and red casing, this switch offers a tactile and visually striking user experience. With an IP6K8S sealing rating, it ensures protection against dust and water ingress. The green LED illumination, powered by a 12V voltage source, provides clear status indication even in low-light conditions. With a contact rating of 5A, SPDT configuration, and gold-plated brass contacts, it guarantees efficient and low-resistance switching. Ideal for applications requiring a rugged yet stylish interface, the LP9-21131G21 is the go-to choice for industries where performance and longevity are paramount.
