LP9-21131J29

OTTLP9_21131J29
Heilind Number:OTTLP9-21131J29
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21131J29
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

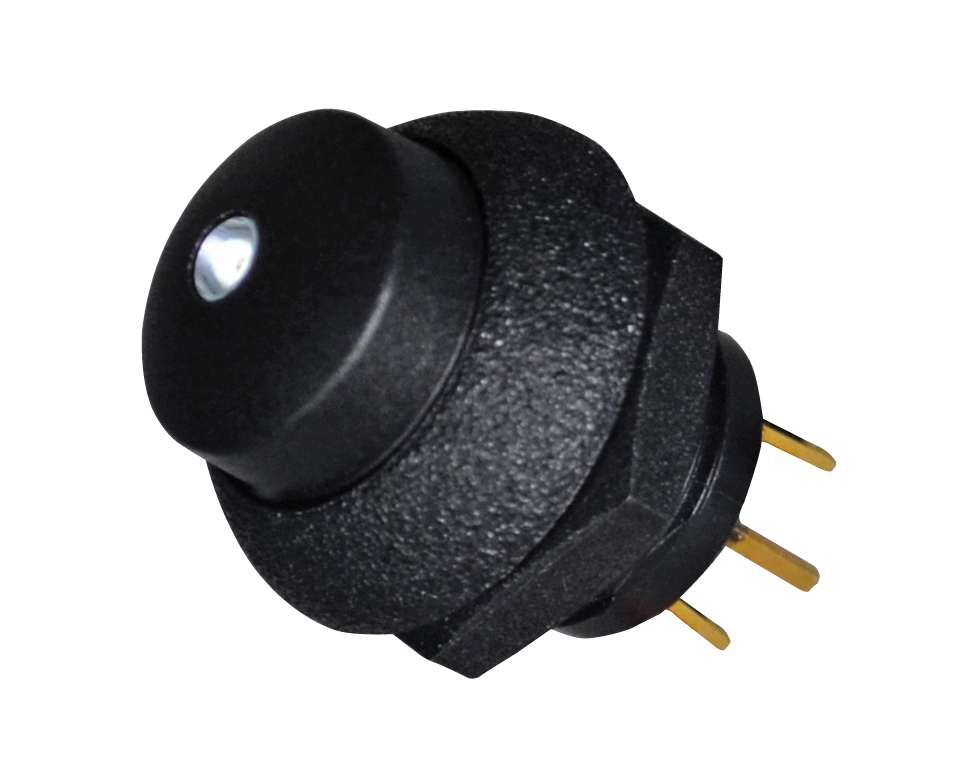

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21131J29
Series:LP9
Cap Color:White
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome Lightpipe)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.39 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP9-21131J29

Detailed Description

The LP9 Series Illuminated Dome Pushbutton Switch ( LP9-21131J29) combines durable construction with reliable performance. Featuring a White Cap and Black Case, this switch is designed for Panel Mounting in a variety of applications. The Illuminated Button, with a Raised Dome Lightpipe, offers easy visibility, with Blue LED Illumination at 12V. With an IP6K8S rating, it ensures protection against dust and water ingress. The SPDT configuration, along with a 5A current rating, allows for versatile functionality. Constructed with high-quality materials like Gold-Plated Brass contacts and Thermoplastic housing, this switch guarantees a long lifespan, with a durability rating of 25,000 cycles. Operating efficiently in temperatures ranging from -55°C to 85°C, and compatible with both 115VAC and 28VDC, this switch is a reliable choice for demanding environments.
