LP9-21131K29

OTTLP9_21131K29
Heilind Number:OTTLP9-21131K29
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21131K29
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

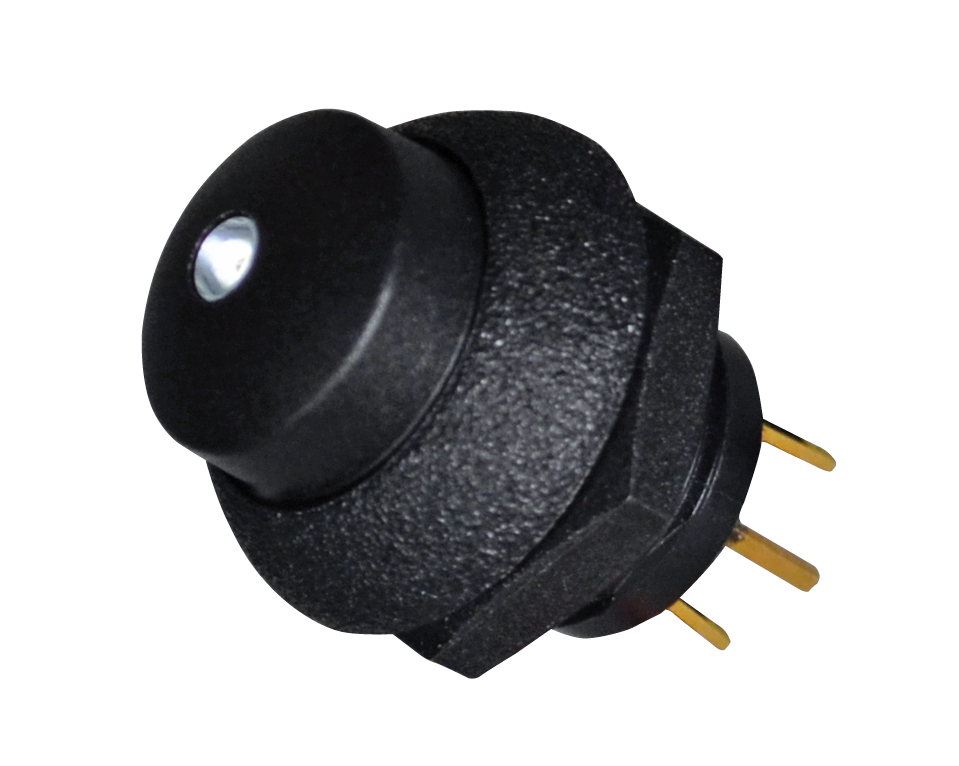

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21131K29
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White
Actuator Length:.39 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
SKU:OTTLP9-21131K29

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch with SKU LP9-21131K29. This high-quality switch features a sleek design with a white cap and black casing, perfect for modern applications. With an IP6K8S rating, it ensures reliable performance even in challenging environments. The button, made of thermoplastic with a raised dome lightpipe actuator, offers comfortable operation. Gold-plated brass contacts guarantee durability, with a rating of 25,000 cycles. Suitable for panel mounting, this switch has a current rating of 5A and contact configuration of SPDT. Illuminated with white light at 12V, it provides clear visual feedback. Operating temperatures ranging from -55°C to 85°C and voltage ratings of 115VAC and 28VDC make it versatile for various setups. Ideal for applications where reliability and visibility are essential, the LP9 Series switch is a dependable choice in the world of electronics.
