LP9-21132F22

OTTLP9_21132F22
Heilind Number:OTTLP9-21132F22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21132F22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

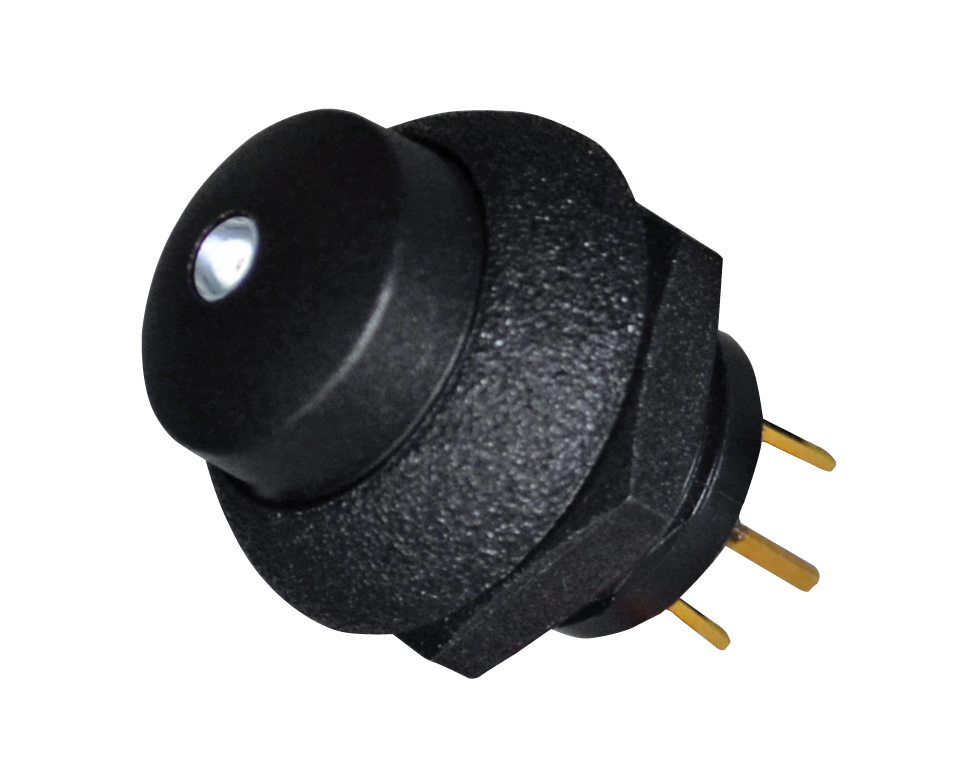

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21132F22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.39 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-21132F22

Detailed Description

The LP9 series Illuminated Dome Pushbutton Switch, SKU LP9-21132F22, is a high-performance panel mount switch designed for reliable operation in demanding environments. Featuring a durable black thermoplastic housing and IP6K8S sealing, this switch offers exceptional protection against dust and water ingress. The illuminated red button with a raised dome lightpipe provides clear visibility, while the gold-plated brass contacts ensure efficient and low-resistance switching. With a current rating of 5A and a voltage rating of 115VAC/28VDC, it is suitable for a wide range of applications. The SPDT configuration and On-(On) switch function offer versatility in control. Operating smoothly in temperatures ranging from -55°C to 85°C, and boasting a durability rating of 25,000 cycles, this switch guarantees long-lasting performance. Ideal for use in industrial, automotive, and marine settings, it meets the highest standards of quality and reliability.
