LP9-22111C24

OTTLP9_22111C24
Heilind Number:OTTLP9-22111C24
Manufacturer:OTTO Controls
Manufacturer Number:LP9-22111C24
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

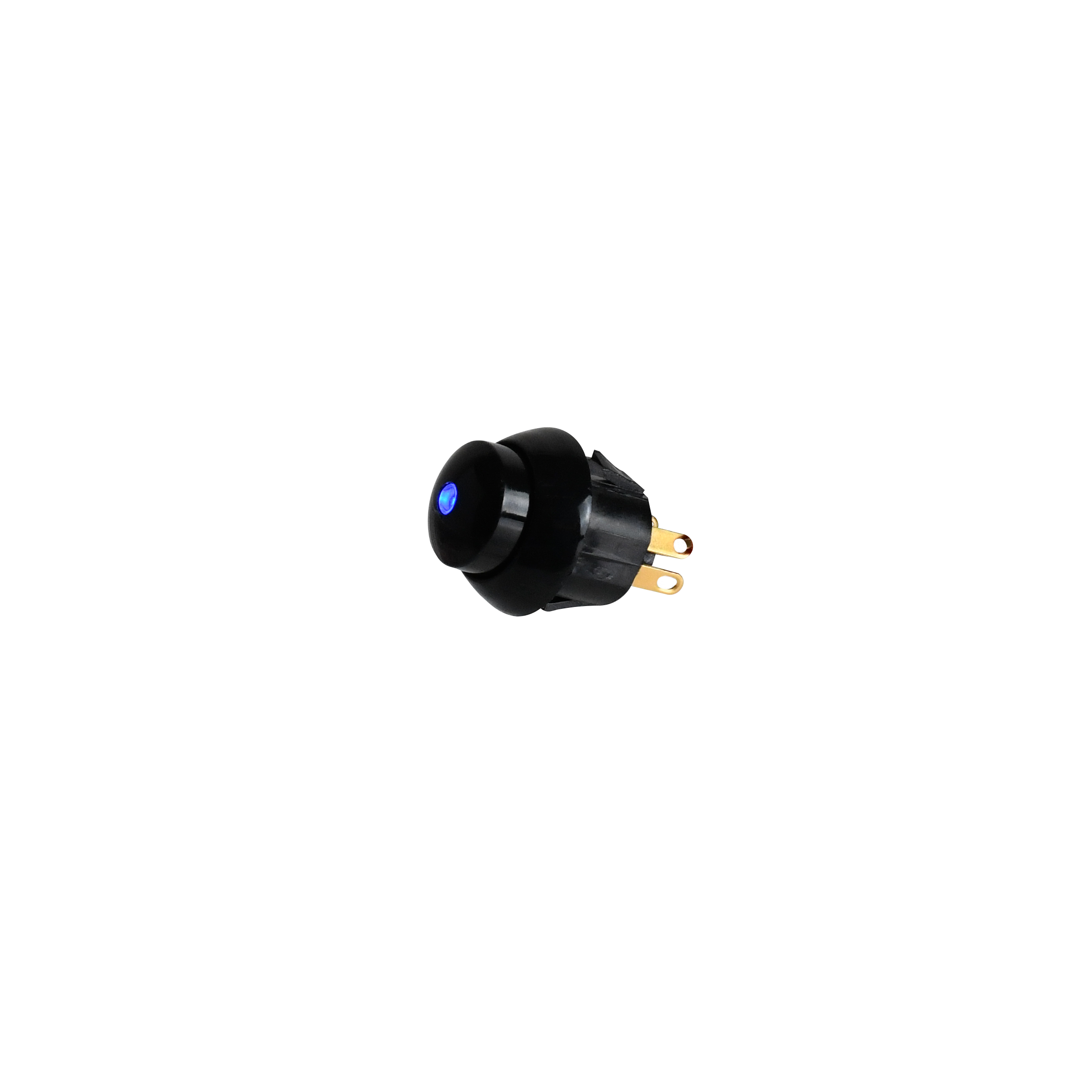

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-22111C24
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Yellow
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP9-22111C24

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, a high-performance component designed for precision control applications. With a durable thermoplastic housing in sleek black, this switch features a yellow button with raised dome lightpipe for easy actuation. Its IP6K8S rating ensures reliable performance in harsh environments, while the gold-plated brass contacts guarantee optimal conductivity. Operating at 115 VAC and 28 VDC with an off-(on) switch function, it offers versatile functionality. The amber illumination adds visual feedback, and with a 25,000 cycle durability rating, this switch is built to last. Suitable for panel mounting with solder termination, it's ideal for use in industrial machinery, automotive systems, and more. Trust the LP9 Series for exceptional quality and performance.
