LP9-31111F21

OTTLP9_31111F21
Heilind Number:OTTLP9-31111F21
Manufacturer:OTTO Controls
Manufacturer Number:LP9-31111F21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

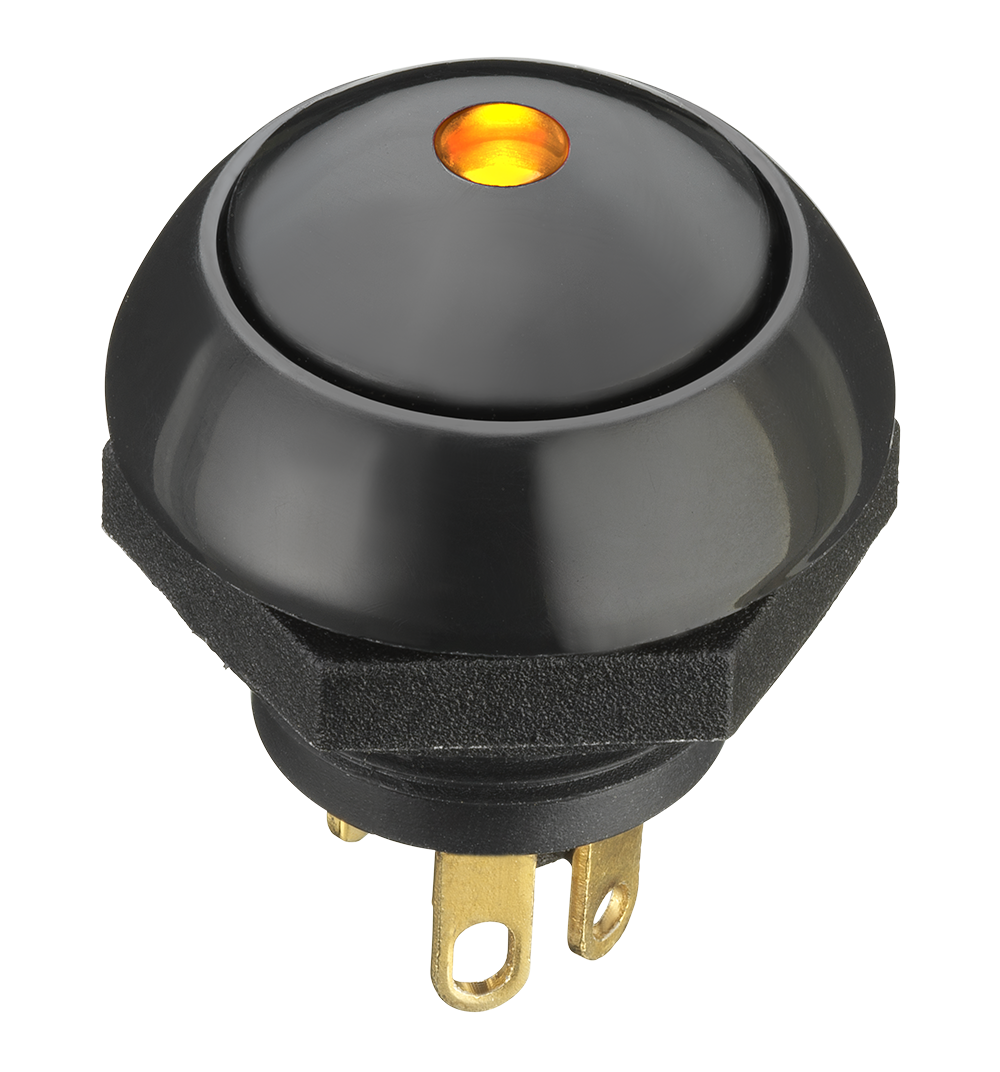

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-31111F21
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-31111F21

Detailed Description

Introducing the LP9 series Illuminated Dome Pushbutton Switch featuring a vibrant red cap and durable black housing. With an IP6K8S rating, this sealed switch is perfect for a variety of applications. The button, with a flush dome lightpipe matte actuator, offers smooth operation and visibility. Gold-plated brass contacts ensure reliable performance, while the thermoplastic construction guarantees longevity. Operating at 115VAC or 28VDC, with an illumination voltage of 12V, it's versatile for different power setups. This SPST-NO switch, with a 5A current rating, is ideal for off-(on) functions. Panel mount installation and solder termination make it easy to integrate. With a wide temperature range from -55°C to 85°C, and a durability rating of 25,000 cycles, it's built to last. Perfect for automotive, industrial, or marine use, the LP9 series sets a new standard in pushbutton switches.
