LP9-31111H29

OTTLP9_31111H29
Heilind Number:OTTLP9-31111H29
Manufacturer:OTTO Controls
Manufacturer Number:LP9-31111H29
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

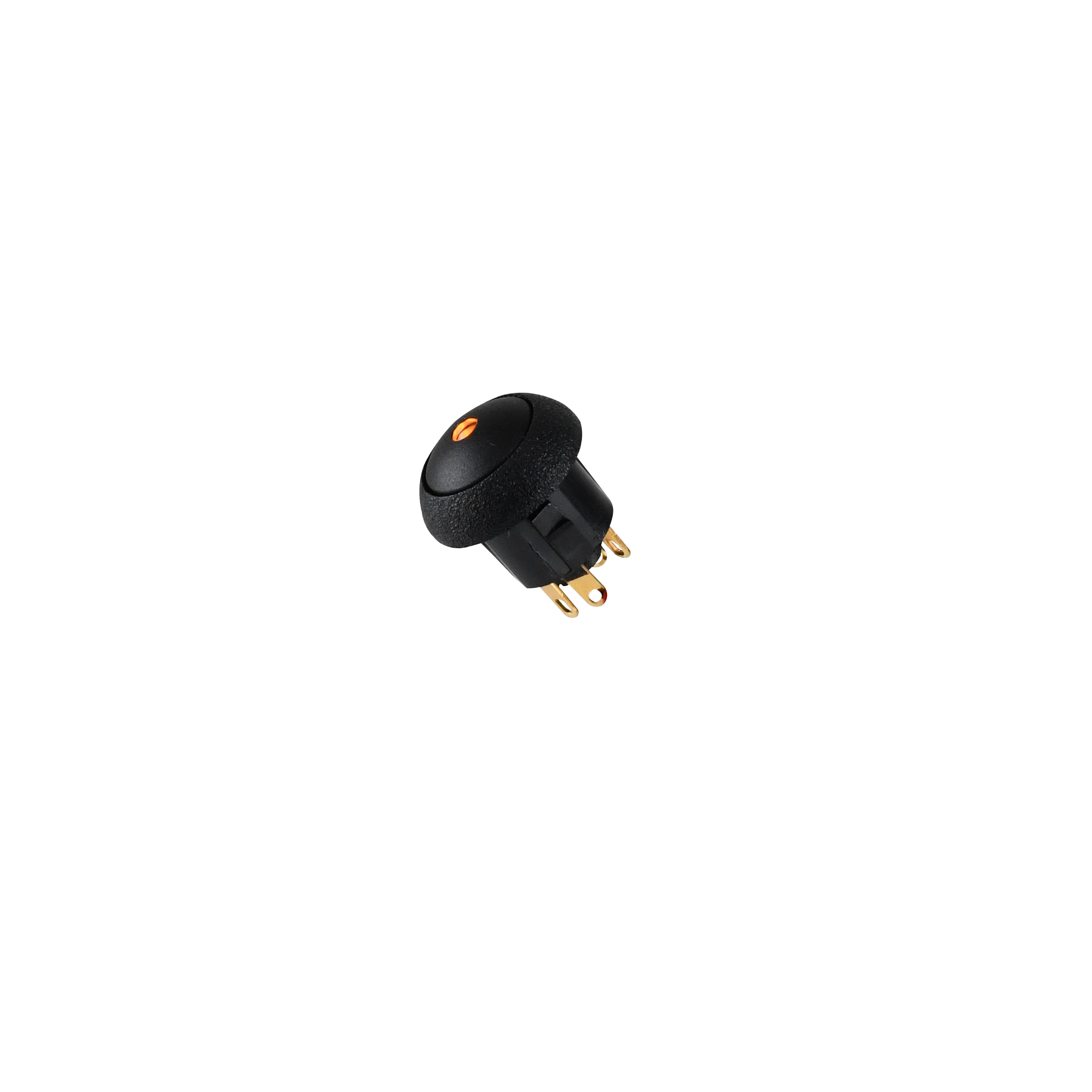

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-31111H29
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP9-31111H29

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, designed for seamless panel mounting in various applications. Featuring a sleek black case with a white flush dome lightpipe cap, this switch offers a durable and reliable solution with a sealing rating of IP6K8S. The round actuator, made of thermoplastic material, is complemented by a matte finish, ensuring smooth operation. With a contact plating of gold and a contact configuration of SPST-NO, this switch guarantees efficient performance with a current rating of 5A. The amber illumination, powered by 12V, adds a visual cue to signal operation. With a wide operating temperature range from -55°C to 85°C and a durability rating of 25,000 cycles, this switch is built to withstand harsh environments. Trust in the LP9-31111H29 for high-quality, long-lasting switching capabilities.
