LP9-31132F22

OTTLP9_31132F22
Heilind Number:OTTLP9-31132F22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-31132F22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

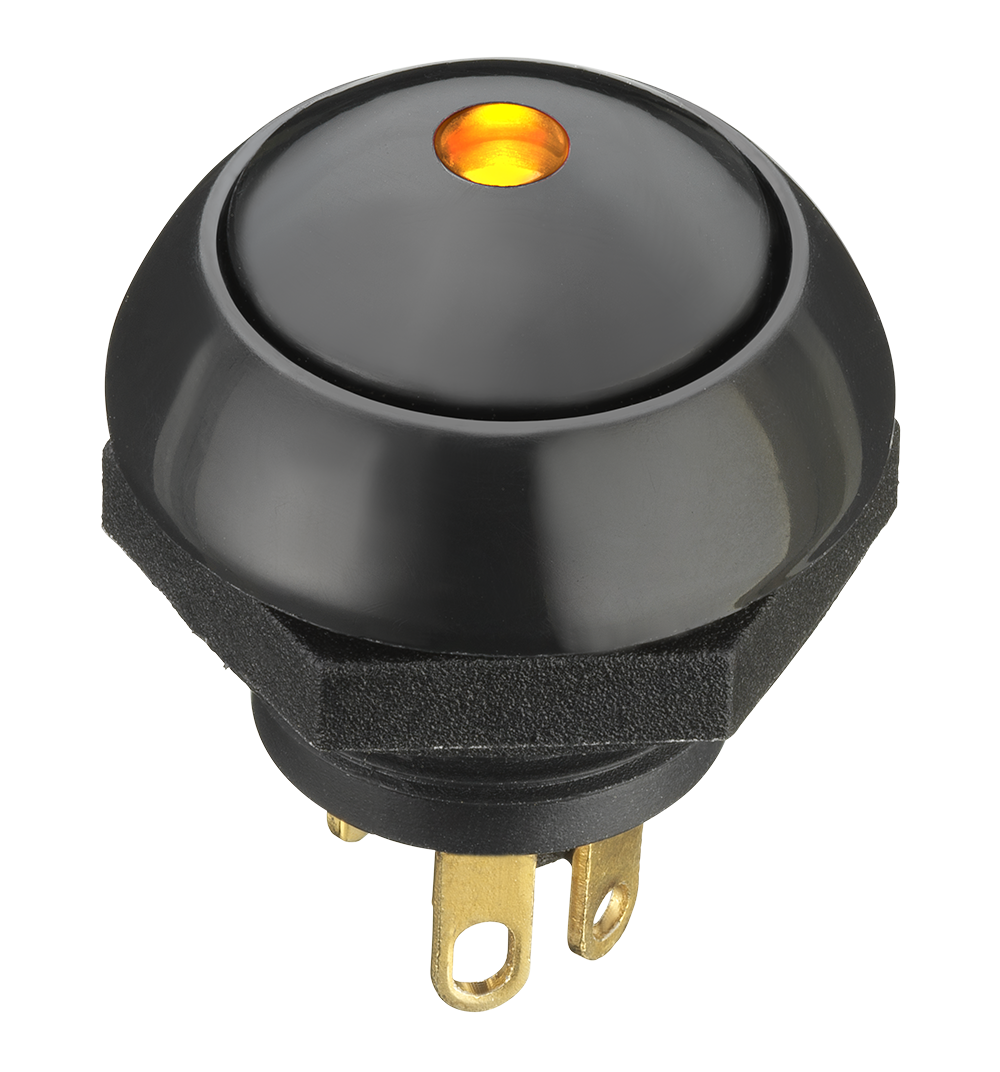

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-31132F22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-31132F22

Detailed Description

The LP9 Series Illuminated Dome Pushbutton Switch, with SKU LP9-31132F22, is a high-performance panel mount switch designed for durability and reliability in various applications. Featuring a sleek black cap and case, this switch is not only aesthetically pleasing but also boasts an IP6K8S sealing rating, making it resistant to dust and water ingress. The red illumination, powered by a 12V voltage, enhances visibility in low-light conditions. Its flush dome button with a matte finish offers a comfortable actuation experience. The switch is rated for 5A current, with a contact plating of gold for superior conductivity. With a contact configuration of SPDT and a switch function of On-(On), it provides versatile control options. Constructed with thermoplastic housing and actuator, and brass contact material, this switch ensures longevity even in harsh environments. Operating temperature ranging from -55°C to 85°C further enhances its suitability for diverse settings. The LP9-31132F22 is a standout choice in the realm of push button switches, delivering performance, durability, and visual appeal.
