LP9-32112B22

OTTLP9_32112B22
Heilind Number:OTTLP9-32112B22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-32112B22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

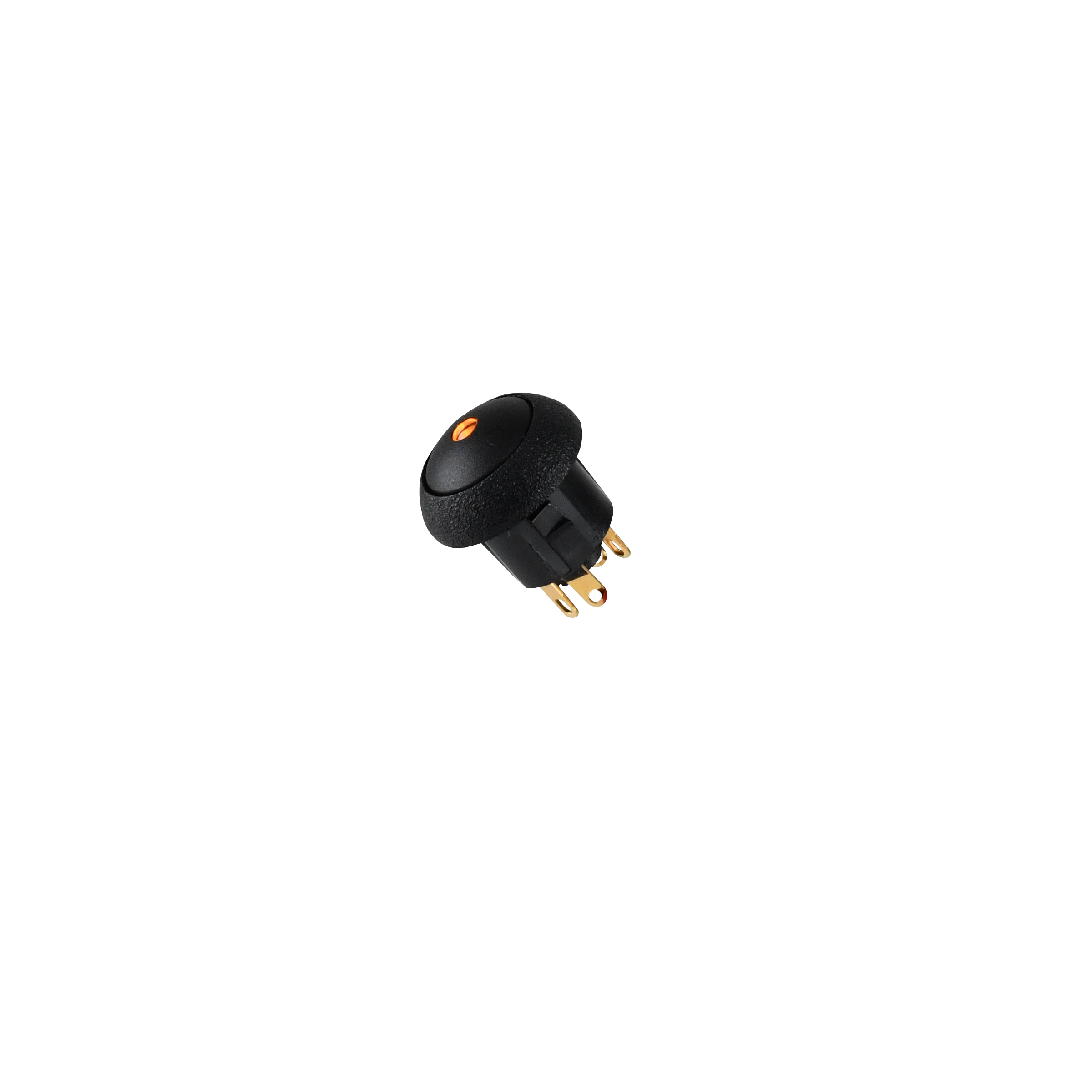

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-32112B22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP9-32112B22

Detailed Description

Introducing the LP9 series Illuminated Dome Pushbutton Switch ( LP9-32112B22), a cutting-edge solution for tactile control applications. Boasting a sleek black design with a flush dome lightpipe matte button, this switch exudes modernity. Its IP6K8S rating ensures reliable performance even in harsh environments. With a durable thermoplastic housing and gold-plated contacts, it guarantees longevity with a 25,000 cycle durability rating. Featuring a SPST-NO contact configuration and Off-(On) switch function, it offers precise control. The green illumination, powered by 2V, adds a visually striking element. Suitable for both AC (115V) and DC (28V) circuits, this switch is versatile. Panel mountable and with solder termination, installation is a breeze. Whether in aerospace, automotive, or industrial settings, the LP9 is the go-to choice for high-performance switching needs.
