LP9-32112C22

OTTLP9_32112C22
Heilind Number:OTTLP9-32112C22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-32112C22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

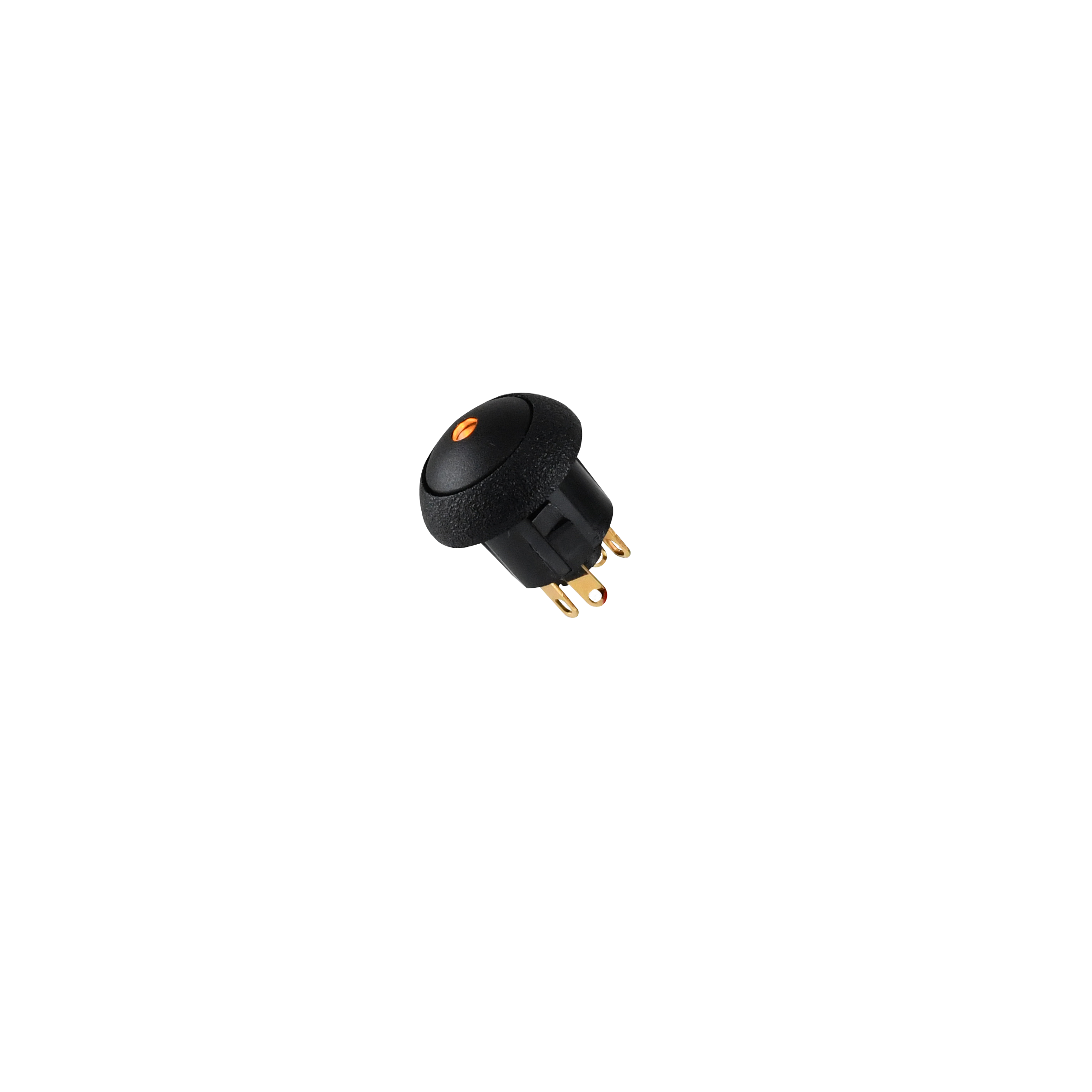

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-32112C22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP9-32112C22

Detailed Description

Introducing the LP9 series Illuminated Dome Pushbutton Switch, SKU LP9-32112C22, designed for reliable performance in demanding environments. Featuring a sleek black design with IP6K8S ingress protection, this switch ensures durability with a 25,000-cycle lifespan. The button's flush dome lightpipe, illuminated in amber with a 2V voltage, offers enhanced visibility. Constructed with a thermoplastic housing and gold-plated brass contacts, it guarantees efficient conductivity. With a 5A current rating and SPST-NO contact configuration, this panel-mount switch is perfect for applications requiring a momentary "Off-(On)" function. Operating in a wide temperature range from -55°C to 85°C and compatible with both AC (115V) and DC (28V) voltages, it suits various industrial and automotive settings. Trust in the LP9 for premium quality and performance in your switch needs.
