LP9-32112E22

OTTLP9_32112E22
Heilind Number:OTTLP9-32112E22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-32112E22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

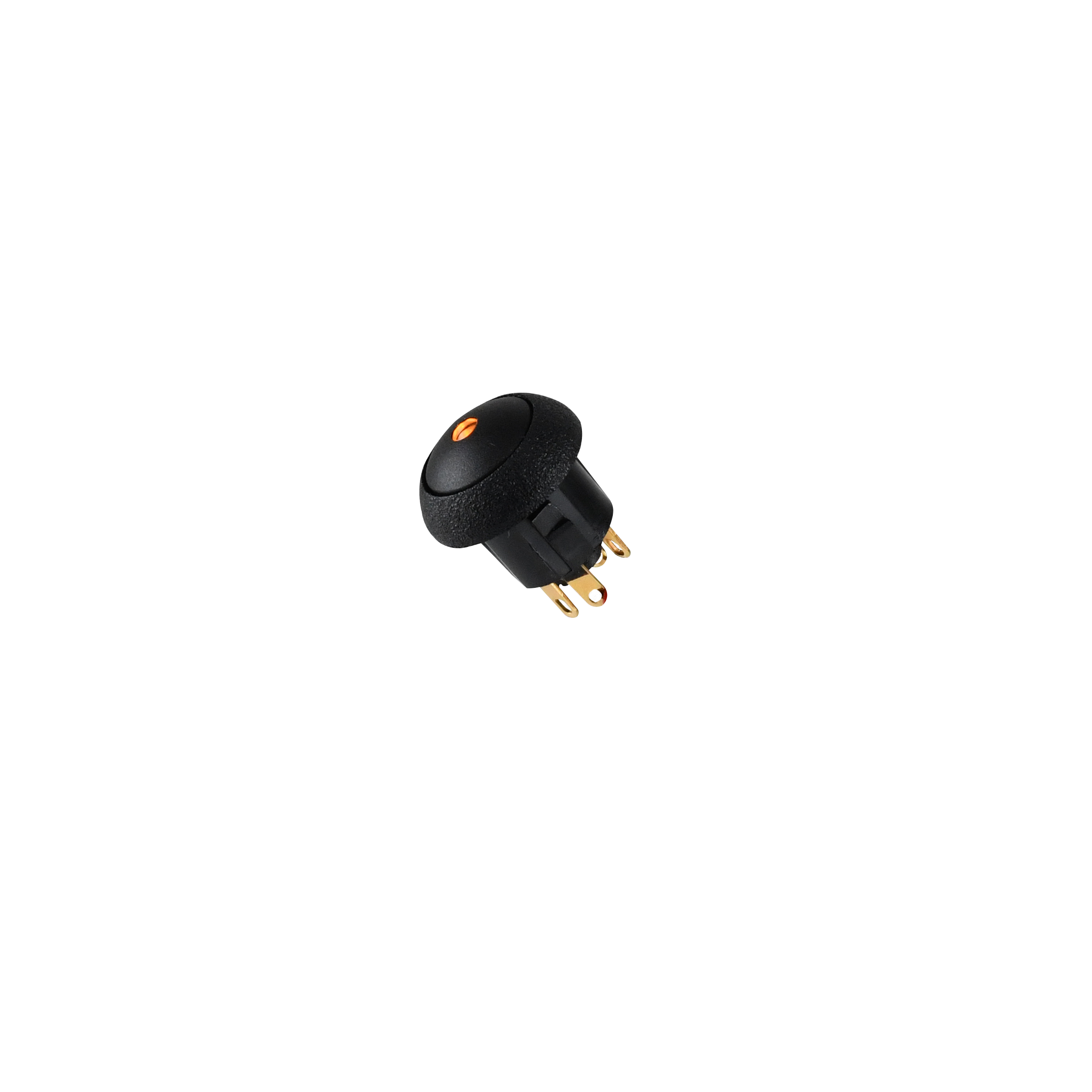

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-32112E22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:2 V
SKU:OTTLP9-32112E22

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, featuring a sleek black design with a flush dome lightpipe matte actuator for easy operation. With an IP6K8S sealing rating, this switch ensures reliable performance in various environments. The durable thermoplastic housing and gold-plated brass contacts guarantee longevity, with a 25,000 cycle durability rating. Operating at 115VAC or 28VDC, with a 5A current rating, it offers versatile use. The white illumination, powered at 2V, enhances visibility. Ideal for panel mounting, its SPST-NO contact configuration and off-(on) switch function provide precise control. Suitable for temperatures ranging from -55°C to 85°C, it's a dependable choice for industrial applications. Upgrade your control systems with the LP9-32112E22, the pinnacle of pushbutton switches.
