LP9-41111K22

OTTLP9_41111K22
Heilind Number:OTTLP9-41111K22
Manufacturer:OTTO Controls
Manufacturer Number:LP9-41111K22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

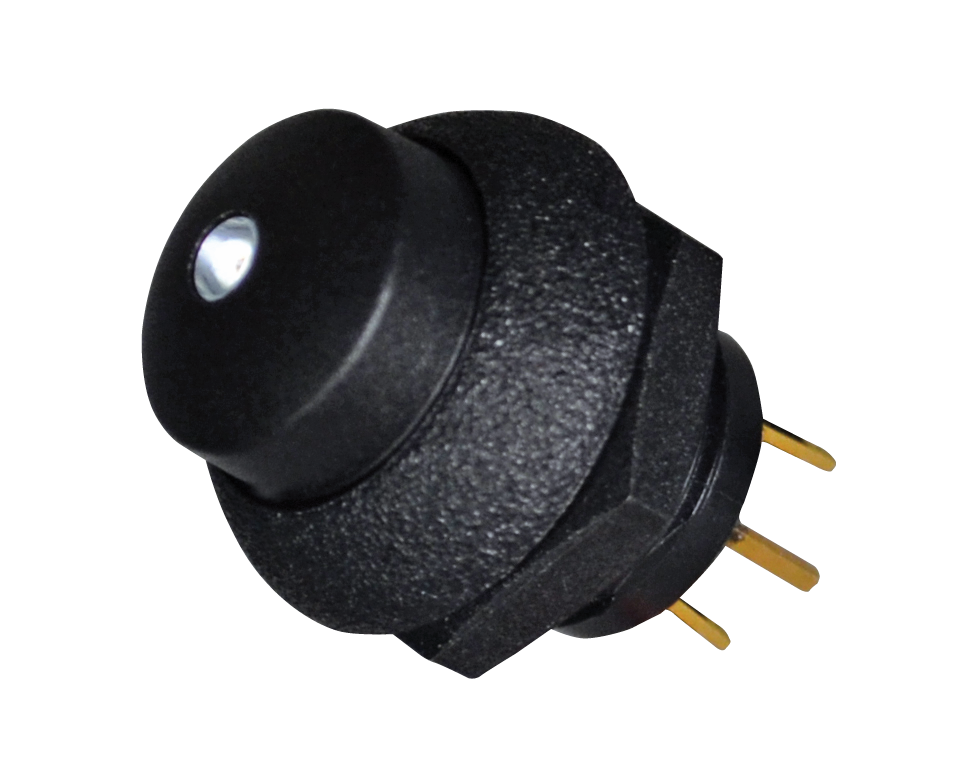

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-41111K22
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
SKU:OTTLP9-41111K22

Detailed Description

The LP9 Series Illuminated Dome Pushbutton Switch, SKU LP9-41111K22, is a high-performance panel mount switch designed for durability and reliability in various applications. Featuring a sleek black housing and cap, with IP6K8S sealing, this switch ensures protection against dust and water ingress. The illuminated white lightpipe, powered by a 12V illumination voltage, offers clear visibility in dimly lit environments. The raised dome button actuator, made of thermoplastic, provides a responsive and tactile user experience. With a contact plating of gold, brass contact material, and a contact configuration of SPST-NO, this switch guarantees efficient and low-resistance electrical connections. Rated for 25,000 cycles of operation, it offers long-term performance. Suitable for a wide temperature range from -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, this switch is versatile and reliable in demanding conditions. Whether for industrial machinery, automotive controls, or aerospace applications, the LP9 Series switch delivers precision control and longevity.
